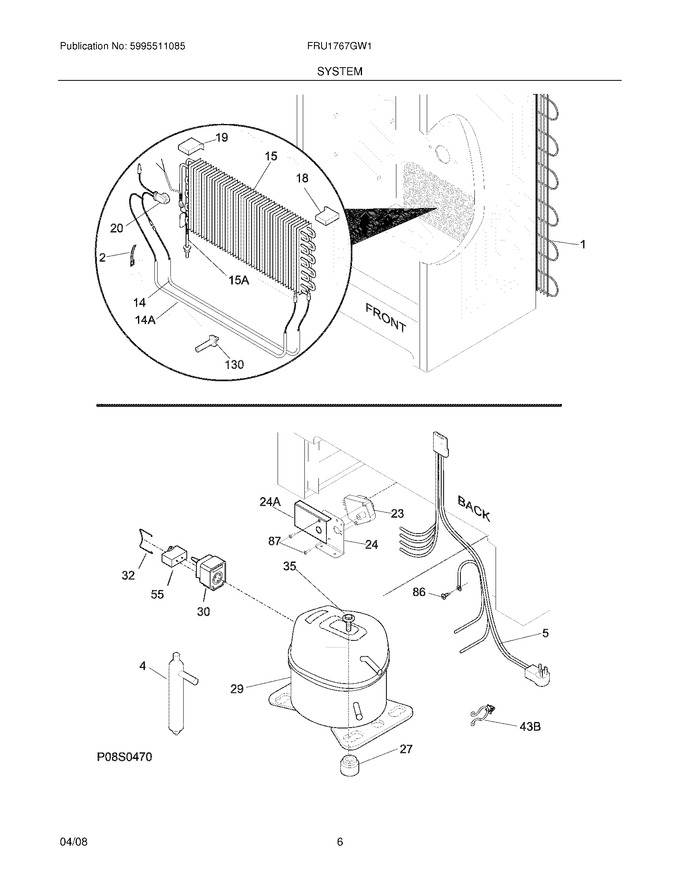

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
14	216730700		Heater-defrost			Immediately	$ 116.44
18	297078700		Insulator-evap,styrofoam				$ 8.14
19	297078800		Insulator-evap,styrofoam				$ 2.32
20	216731001		Thermostat, Defrost			Immediately	$ 81.75
24	216968501		Bracket-timer				$ 74.70
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	216954200		Controller,compressor ,5 Speed				$ 63.79
32	216954300		Clip,controller				$ 17.01
35	297177200		Bolt,compressor ,(4)		Appelez-nous	-
55	297286812		Capacitor,run ,10mf   (Replaces: 216985000)			Immediately	$ 11.78
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
87	5304463290		Screw,hi-lo Blunt ,no.8-18x1/2		Appelez-nous	-
130	216486800		Support,evaporator Mtg		Appelez-nous	-
15A	297217900		Heat Exchanger   (Replaces: 216751100)			Immediately	$ 91.82
24A	297207900		Guard,timer				$ 5.72
43B	297315800		Clip   (Replaces: 297048400)				$ 10.13
F1	5300083897		Condenser				$ 538.37
F14A	216730500		Heater-internal		Appelez-nous	-
F15	297414901		Evaporator   (Replaces: 216997300)			Immediately	$ 171.34
F23	5304518034		Timer-defrost   (Replaces: 216744500)			Immediately	$ 57.55
F29	5304507767		Compressor,w/o Electricals   (Replaces: 216966300)				$ 726.41
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F5	297244600		Harness-main   (Replaces: 297172700)				$ 130.44
FNI	297366805		Cord-power,flat   (Replaces: 297169900)				$ 68.68
NI	216695300		Relay				$ 77.97
NI	216502500		Sleeve,suction Line				$ 10.85
NI	216683900		Thermostat,service Part				$ 61.62
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 13.46
