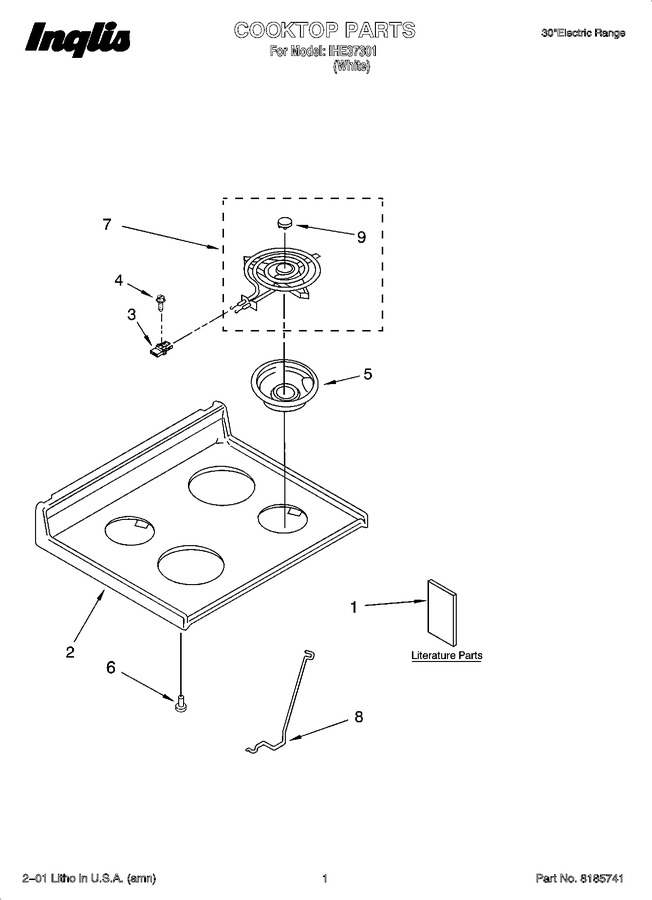

01 - Cooktop Parts


02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT9781875		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT9752776		Literature Parts (template, Anti-tip)		Appelez-nous	-
1	LIT9754176		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT9752768		Literature Parts (wiring Diagram)		Appelez-nous	-
2	9781989GW		Cooktop, Coil		Appelez-nous	-
3	9782013		Receptacle, Clip		Appelez-nous	-
4	WP313808		Screw, 6-32 X 1/4   (Replaces: 9750891)				$ 6.84
5	W10290353RW		Ring Bowl (6``)   (Replaces: 3169204)			Immediately	$ 19.27
5	WPW10290350		Ring Bowl (8``)   (Replaces: 3169205)			Immediately	$ 15.25
6	238614		Bumper (2)   (Replaces: 9750969)				$ 72.68
7	WPW10259868		Element, Surface (coil, 6`` Rf)   (Replaces: 9782074)			Immediately	$ 112.28
7	9782075		Element, Surface (coil, 6`` Lr (accu Simmer))		Appelez-nous	-
7	9782072		Element, Surface (coil, 8`` Lf-rr)		Appelez-nous	-
8	9751538		Cooktop Rod		Appelez-nous	-
9	4211952		Medallion, (3)		Appelez-nous	-
9	4211986		Medallion, (1) (accu-simmer)		Appelez-nous	-
