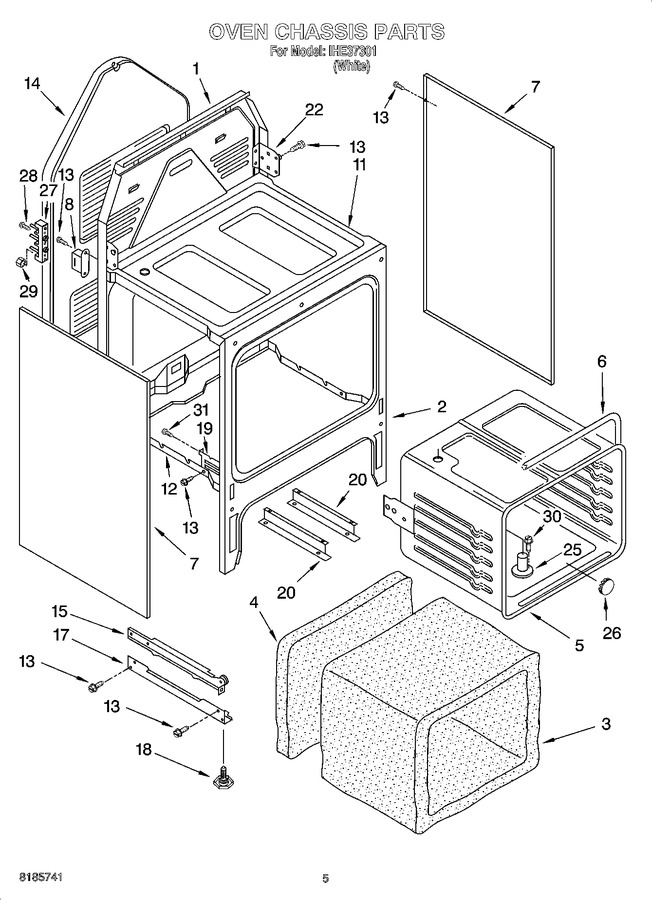

01 - Cooktop Parts


02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9750146		Main Chassis, Back		Appelez-nous	-
2	9750477GM		Chassis, Front		Appelez-nous	-
3	9754001		Insulation, Wrap		Appelez-nous	-
4	9754010		Insulation, Rear		Appelez-nous	-
5	9781294GM		Oven Liner		Appelez-nous	-
6	9750691		Gasket, Oven		Appelez-nous	-
7	9781907PW		Oven, Side Panel (2)		Appelez-nous	-
8	9780881		Ballast		Appelez-nous	-
11	9750479GM		Burner Box		Appelez-nous	-
12	9750142		Oven Bottom		Appelez-nous	-
13	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
14	9750150		Panel, Rear		Appelez-nous	-
15	9750223		Drawer Rail, Left		Appelez-nous	-
15	9750224		Drawer Rail, Right		Appelez-nous	-
17	9750147		Bottom Rail (2)		Appelez-nous	-
18	WPW10058460		Foot, (4)   (Replaces: 312701)			Immediately	$ 7.07
19	9782005		Hinge, Receiver (r Or L)		Appelez-nous	-
20	9781904		Support Rail		Appelez-nous	-
22	9750258		Hinge, Cktp.-left		Appelez-nous	-
22	9750416		Hinge, Cktp.-right		Appelez-nous	-
25	9750391		Vent Tube		Appelez-nous	-
26	9780578		Button, Plug		Appelez-nous	-
27	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 27.12
28	98884		Screw, 10-16 X 1		Appelez-nous	-
29	WP112432		Nut (4)   (Replaces: 112432)				$ 7.16
30	9780271		Screw, 8-18 X 1/4``		Appelez-nous	-
31	9780272		Screw, 10-16 X 1/2		Appelez-nous	-
