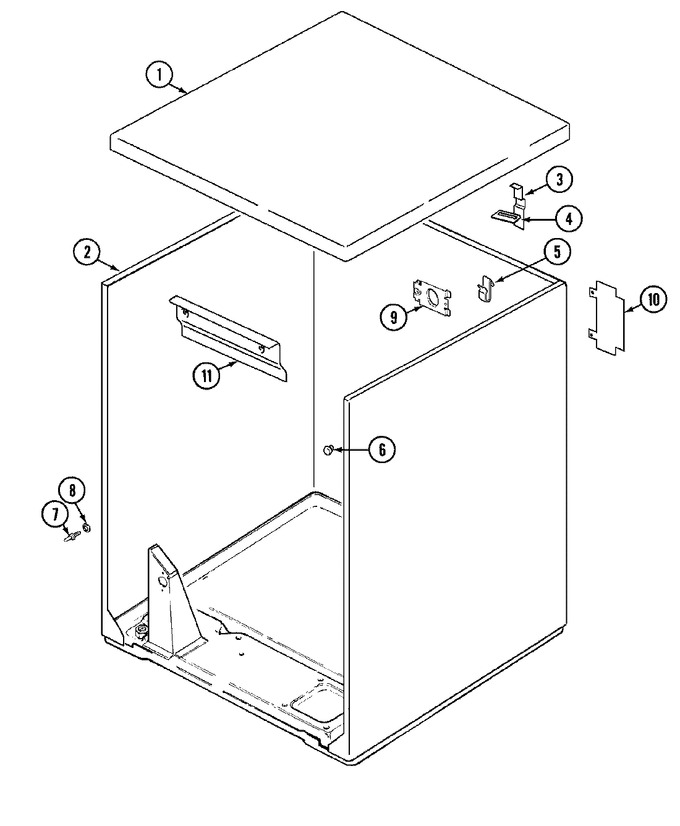

01 - Cabinet (bcx)
02 - Control Panel (bcx)
03 - Door (bcx)
04 - Heater (bcx)
05 - Motor & Drive (bcx)
06 - Tumbler (bcx)
07 - Wiring Information (bcx)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 53-2435-24 | Top, Cabinet (alm) | 10 |
|
- | ||||
| 2 | 53-2147-24 | Cabinet & Base Assy. (alm) | 10 |
|
- | ||||
| 3 | 63-5712 | Hinge, Cabinet Top | 10 |
|
- | ||||
| 4 | 33-0930 | Pad, Top Hinge | 10 |
|
- | ||||
| 4 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 5 | 25-3034 | Clip, Wiring | 10 |
|
- | ||||
| 6 | 33-2653 | Bumper, Cabinet | 10 |
|
- | ||||
| 7 | 53-0643 | Pin, Locator | 10 |
|
- | ||||
| 8 | WP3400029 | Nut, Locator Pin (Replaces: 25-0224) | 10 |
|
Immediately | $ 6.98 | |||
| 8 | 53-0200 | Sleeve, Locator Pin | 10 |
|
- | ||||
| 9 | 53-0135 | Support, Power Cord | 10 |
|
- | ||||
| 10 | 53-0284 | Cover, Terminal | 10 |
|
- | ||||
| 10 | WP90767 | Screw (Replaces: 25-7857) | 10 |
|
Immediately | $ 7.04 | |||
| 11 | WP12990527 | Screw, Sems (Replaces: 25-3457) | 10 |
|
Immediately | $ 7.15 | |||
| 11 | 53-0133 | Shield, Heat | 10 |
|
- |
