SELECT A DIAGRAM
01 - Cabinet (bcx)
02 - Control Panel (bcx)
03 - Door (bcx)

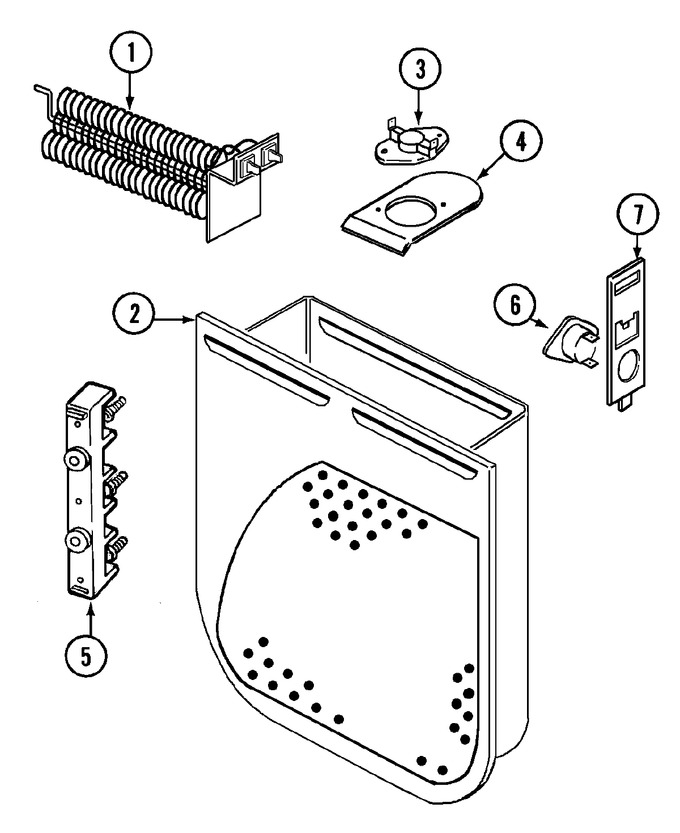

04 - Heater (bcx)
05 - Motor & Drive (bcx)
06 - Tumbler (bcx)
07 - Wiring Information (bcx)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3400074 | Screw (Replaces: 25-7863) | 10 |
|
$ 6.47 | ||||
| 1 | LA-1044 | Element, Heater (Replaces: 53-1641) | 10 |
|
Immediately | $ 51.91 | |||
| 2 | 53-1232 | Heater Housing Assembly | 10 |
|
- | ||||
| 2 | 25-7819 | Screw No.8-18x1/2 Pan Hd | 10 |
|
- | ||||
| 3 | 25-3083 | Screw | 10 |
|
- | ||||
| 3 | WP53-0771 | Thermostat, Hi-limit (Replaces: 53-0771) | 10 |
|
$ 110.87 | ||||
| 4 | WP90767 | Screw (Replaces: 25-7741) | 10 |
|
Immediately | $ 7.04 | |||
| 4 | 53-0285 | Bracket, Thermostat | 10 |
|
- | ||||
| 5 | 53-0965 | Strap, Ground | 10 |
|
- | ||||
| 5 | 25-6124 | Nut | 10 |
|
- | ||||
| 5 | 25-3122 | Washer, Flat | 10 |
|
- | ||||
| 5 | 53-1518 | Block, Terminal | 10 |
|
$ 29.01 | ||||
| 5 | WP3400074 | Screw (Replaces: 25-7952) | 10 |
|
$ 6.47 | ||||
| 5 | WP112432 | Nut (no.10-32) (Replaces: 25-0027) | 10 |
|
$ 7.16 | ||||
| 6 | WP53-1182 | Fuse, Thermal (Replaces: 53-1182) | 10 |
|
$ 55.53 | ||||
| 7 | 53-1181 | Bracket, Thermal Fuse | 10 |
|
- |
