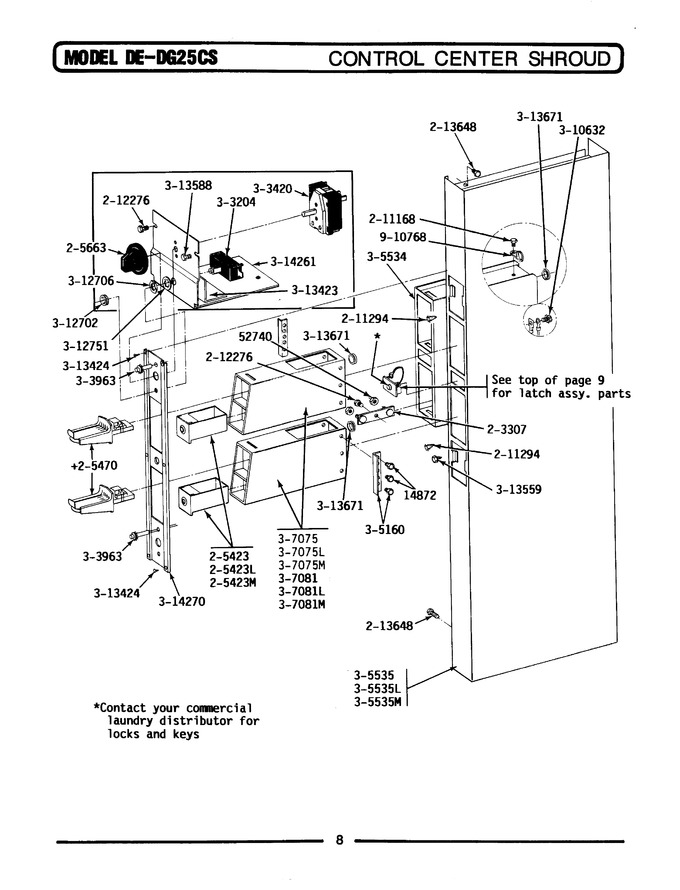

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | Y014872 | Screw, No.10 X 3/8 | 00 |
|
- | ||||
| 002 | WP62739 | Nut (Replaces: Y052740) | 00 |
|
$ 6.85 | ||||
| 003 | NLA | Mtg. Strap----na | 00 |
|
- | ||||
| 004 | 208883 | Coin Box-white (Replaces: 205423) | 00 |
|
- | ||||
| 004 | 208883 | Coin Box-almond (Replaces: 205423L) | 00 |
|
- | ||||
| 005 | NLA | Maytag Coin Slide | 00 |
|
- | ||||
| 006 | 205663 | Knob For Selector Switch | 00 |
|
- | ||||
| 007 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | 00 |
|
$ 6.75 | ||||
| 008 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 009 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 010 | W11395752 | Nut, Hex (Replaces: 212328) | 00 |
|
$ 11.74 | ||||
| 011 | NLA | Spring Washer For Lock | 00 |
|
- | ||||
| 012 | WP98165 | Screw, Hex Hd No.8 X 5/8 (Replaces: 213648) | 00 |
|
$ 7.20 | ||||
| 013 | Y303204 | Start Switch With Nuts | 00 |
|
- | ||||
| 014 | Y303420 | Selector Switch | 00 |
|
- | ||||
| 015 | 303963 | Indicator Light | 00 |
|
- | ||||
| 016 | Y303981 | Ground Wire For Latch | 00 |
|
- | ||||
| 017 | NLA | Coin Meter Stop With Screws | 00 |
|
- | ||||
| 018 | 305534 | Vault Assembly | 00 |
|
- | ||||
| 019 | NLA | Control Shroud-white | 00 |
|
- | ||||
| 020 | NLA | Coin Meter Box Assembly - D25c | 00 |
|
- | ||||
| 021 | Y307081 | Coin Meter Weld Assembly | 00 |
|
- | ||||
| 021 | NLA | Coin Meter Weld Assy-alm----na | 00 |
|
- | ||||
| 022 | Y310632 | Screw | 00 |
|
- | ||||
| 023 | Y312702 | Knurled Nut | 00 |
|
$ 18.18 | ||||
| 024 | Y312706 | Hex Nut On Switch | 00 |
|
- | ||||
| 025 | WPW10139799 | Lock Washer (Replaces: 312751) | 00 |
|
$ 8.32 | ||||
| 026 | NLA | Insulator | 00 |
|
- | ||||
| 027 | W10837674 | Screw (Replaces: Y313424) | 00 |
|
$ 6.90 | ||||
| 028 | 206637 | Latch For Cover Plate (Replaces: Y313427) | 00 |
|
$ 68.04 | ||||
| 029 | 313428 | Plate For Latch | 00 |
|
- | ||||
| 030 | WP90767 | Screw (Replaces: Y313559) | 00 |
|
Immediately | $ 7.04 | |||
| 031 | WP488234 | Screw (Replaces: Y313588) | 00 |
|
$ 6.07 | ||||
| 032 | Y313671 | Grommet For Control Center | 00 |
|
- | ||||
| 033 | Y314261 | Switch And Relay Bracket | 00 |
|
- | ||||
| 034 | 314270 | Control Panel | 00 |
|
- | ||||
| 035 | 910768 | Cable Strap-harness To Base | 00 |
|
- |
