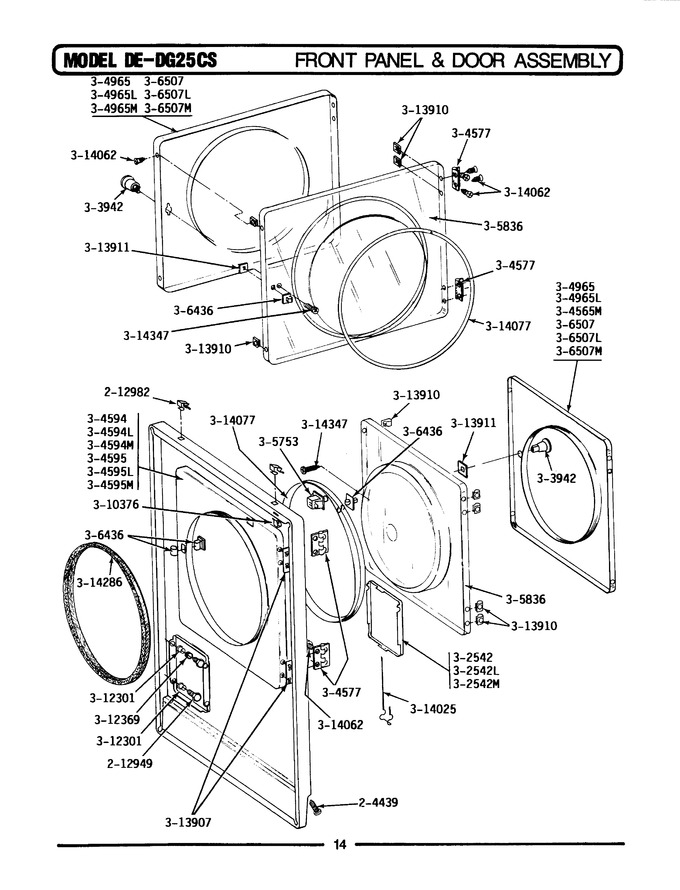

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 204439 | Screw & Fstner Assy(frt.panel) | 00 |
|
$ 8.80 | ||||
| 002 | 212949 | Screw | 00 |
|
- | ||||
| 003 | WP22001650 | Fastener, Panel (Replaces: 212982) | 00 |
|
Immediately | $ 7.34 | |||
| 004 | NLA | Access Door (white) | 00 |
|
- | ||||
| 005 | NLA | Knob And Screw | 00 |
|
- | ||||
| 006 | Y304577 | Door Hinge ----s | 00 |
|
- | ||||
| 007 | NLA | Front Panel-white | 00 |
|
- | ||||
| 008 | 304965 | Door Complete-white | 00 |
|
- | ||||
| 008 | NLA | Door Complete, Almond | 00 |
|
- | ||||
| 009 | W10169313 | Switch, Door (Replaces: Y305753) | 00 |
|
Immediately | $ 29.18 | |||
| 010 | NLA | Inner Door With Knob & Scre | 00 |
|
- | ||||
| 011 | 306436 | Door Latch Kit--w | 00 |
|
Immediately | $ 10.17 | |||
| 012 | NLA | Door Panel-white----na | 00 |
|
- | ||||
| 013 | Y310376 | Clip, Wire Harness | 00 |
|
- | ||||
| 014 | NLA | Bushing For Access Stud | 00 |
|
- | ||||
| 015 | 312369 | Sleeve-access Panel Stud | 00 |
|
- | ||||
| 016 | Y313340 | Label, Lint Screen Instruction | 00 |
|
- | ||||
| 017 | Y313907 | Twin Fastener | 00 |
|
- | ||||
| 018 | Y313910 | Clip, Door Liner To Outer Pnl | 00 |
|
- | ||||
| 019 | Y313911 | Door Strike Retainer | 00 |
|
$ 4.83 | ||||
| 020 | Y313927 | Instruction Label | 00 |
|
- | ||||
| 021 | Y314025 | Latch For Access Door | 00 |
|
- | ||||
| 022 | Y314062 | Screw | 00 |
|
$ 12.03 | ||||
| 023 | 314077 | Door Seal | 00 |
|
- | ||||
| 024 | NLA | Gas Ignition Label | 00 |
|
- | ||||
| 025 | 314286 | Seal For Front Panel | 00 |
|
$ 90.56 | ||||
| 026 | NLA | Screw For Door Knob----na | 00 |
|
- |
