| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 001 |
NLA |
|
Gulmite Wrench No.8 |
00 |
Appelez-nous
|
- |
|
|
|
| 002 |
NLA |
|
Screw, No.5-40 X 3/8 |
00 |
Appelez-nous
|
- |
|
|
|
| 003 |
WP3400014 |
|
Screw-timer To Control Pane (Replaces: 213966) |
00 |
|
|
$ 6.98 |
|
|
| 004 |
Y330064 |
|
Pilot Light |
00 |
Appelez-nous
|
- |
|
|
|
| 005 |
NLA |
|
Leveling Leg |
00 |
Appelez-nous
|
- |
|
|
|
| 006 |
Y330077 |
|
Door Switch |
00 |
Appelez-nous
|
- |
|
|
|
| 007 |
Y330079 |
|
Switch, Push-to-start |
00 |
Appelez-nous
|
- |
|
|
|
| 008 |
Y330080 |
|
Spider And Shaft Asy. |
00 |
Appelez-nous
|
- |
|
|
|
| 009 |
330081 |
|
Timer - Ca 60 Minutes |
00 |
Appelez-nous
|
- |
|
|
|
| 010 |
Y330087 |
|
Drum Assembly Complete |
00 |
Appelez-nous
|
- |
|
|
|
| 011 |
NLA |
|
Front Panel-white |
00 |
Appelez-nous
|
- |
|
|
|
| 012 |
NLA |
|
Front Panel-almond |
00 |
Appelez-nous
|
- |
|
|
|
| 013 |
NLA |
|
Front Panel-harvest Wheat |
00 |
Appelez-nous
|
- |
|
|
|
| 014 |
NLA |
|
Hinge For Door |
00 |
Appelez-nous
|
- |
|
|
|
| 015 |
Y330102 |
|
Front Panel-white |
00 |
Appelez-nous
|
- |
|
|
|
| 016 |
NLA |
|
Front Panel-almond |
00 |
Appelez-nous
|
- |
|
|
|
| 017 |
NLA |
|
Front Panel-harvest Wheat |
00 |
Appelez-nous
|
- |
|
|
|
| 018 |
Y330103 |
|
Lock |
00 |
Appelez-nous
|
- |
|
|
|
| 019 |
NLA |
|
Front Panel-white |
00 |
Appelez-nous
|
- |
|
|
|
| 020 |
330108L |
|
Front Panel-almond |
00 |
Appelez-nous
|
- |
|
|
|
| 021 |
330108M |
|
Front Panel-harvest Wheat |
00 |
Appelez-nous
|
- |
|
|
|
| 022 |
NLA |
|
Timer W/knob And Pin |
00 |
Appelez-nous
|
- |
|
|
|
| 023 |
NLA |
|
Mounting Plate (accumulator) |
00 |
Appelez-nous
|
- |
|
|
|
| 024 |
Y330145 |
|
Conta Accumulator Assembly |
00 |
Appelez-nous
|
- |
|
|
|
| 025 |
Y330147 |
|
Door Switch |
00 |
Appelez-nous
|
- |
|
|
|
| 026 |
NLA |
|
Handle & Pin Kit |
00 |
Appelez-nous
|
- |
|
|
|
| 027 |
NLA |
|
Door-white |
00 |
Appelez-nous
|
- |
|
|
|
| 028 |
NLA |
|
Door-almond |
00 |
Appelez-nous
|
- |
|
|
|
| 029 |
NLA |
|
Door-harvest Wheat |
00 |
Appelez-nous
|
- |
|
|
|
| 030 |
Y330192 |
|
Push-to-start Switch |
00 |
Appelez-nous
|
- |
|
|
|
| 031 |
NLA |
|
Door-white |
00 |
Appelez-nous
|
- |
|
|
|
| 032 |
NLA |
|
Door-almond |
00 |
Appelez-nous
|
- |
|
|
|
| 033 |
NLA |
|
Door-harvest Wheat |
00 |
Appelez-nous
|
- |
|
|
|
| 034 |
WP8281196 |
 |
Screw - Temp. Knob To Lever (Replaces: 331014) |
00 |
|
Immediately |
$ 6.47 |
|
|
| 035 |
NLA |
|
Screw - Handle To Door |
00 |
Appelez-nous
|
- |
|
|
|
| 036 |
61002031 |
 |
Screw - Center Panel (Replaces: 331032) |
00 |
|
|
$ 41.36 |
|
|
| 037 |
331036 |
|
Washer-front Panel Screws |
00 |
Appelez-nous
|
- |
|
|
|
| 038 |
331041 |
|
Button-push-to-start Switch |
00 |
Appelez-nous
|
- |
|
|
|
| 039 |
331061 |
|
Knob For Temperature Contro |
00 |
Appelez-nous
|
- |
|
|
|
| 040 |
331064 |
|
Magnet For Door Handle |
00 |
Appelez-nous
|
- |
|
|
|
| 041 |
331071 |
|
Strike Plate For Door |
00 |
Appelez-nous
|
- |
|
|
|
| 042 |
331083 |
|
Support For Door Glass |
00 |
Appelez-nous
|
- |
|
|
|
| 043 |
NLA |
|
Actuator For Door Switch |
00 |
Appelez-nous
|
- |
|
|
|
| 044 |
NLA |
|
Trim Strip-lower Front Pane |
00 |
Appelez-nous
|
- |
|
|
|
| 045 |
NLA |
|
Trim Bar For Upper Panel |
00 |
Appelez-nous
|
- |
|
|
|
| 046 |
NLA |
|
Pole Block For Door Magnet |
00 |
Appelez-nous
|
- |
|
|
|
| 047 |
331101 |
|
Bezel For Timer-accumulator |
00 |
Appelez-nous
|
- |
|
|
|
| 048 |
NLA |
|
Hinge Rivet |
00 |
Appelez-nous
|
- |
|
|
|
| 049 |
NLA |
|
Dowel Pin For Handle |
00 |
Appelez-nous
|
- |
|
|
|
| 050 |
NLA |
|
Instruction Plate-ct |
00 |
Appelez-nous
|
- |
|
|
|
| 051 |
NLA |
|
Screw-temp Control Lever |
00 |
Appelez-nous
|
- |
|
|
|
| 052 |
331151 |
|
Lever-temperature Control |
00 |
Appelez-nous
|
- |
|
|
|
| 053 |
331165 |
|
Gasket For Door Glass |
00 |
Appelez-nous
|
- |
|
|
|
| 054 |
331166 |
|
Glass For Door |
00 |
Appelez-nous
|
- |
|
|
|
| 055 |
331167 |
|
Gasket For Door-outer |
00 |
Appelez-nous
|
- |
|
|
|
| 056 |
331185 |
|
Hinge Pin For Door |
00 |
Appelez-nous
|
- |
|
|
|
| 057 |
911852 |
|
Washer, Lock (brace) |
00 |
Appelez-nous
|
- |
|
|
|

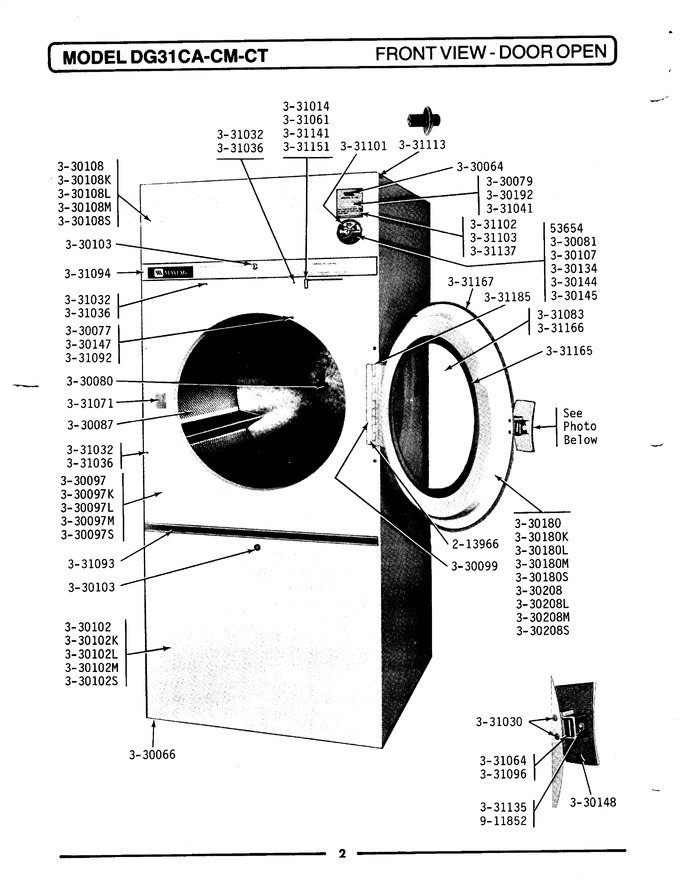

View Diagram in Separate Window
Print Part List
