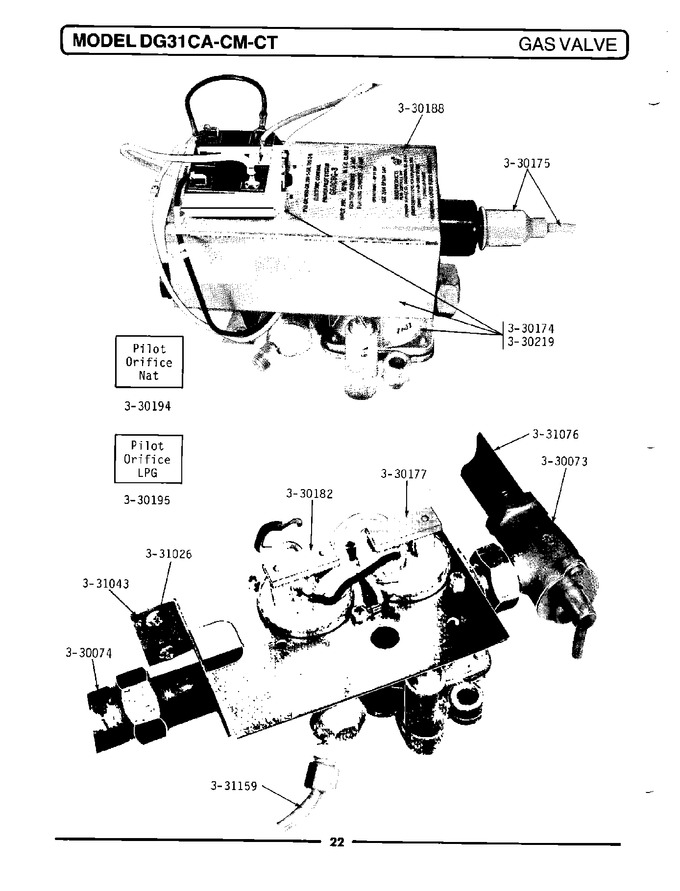

06 - Gas Valve


07 - Burner Assembly & Components


08 - Lint Screen-lower Front


09 - Rear View-shield Removed


10 - Drum Pulley & Bearing Support Assembly


11 - Drum Bearing Support Assembly


12 - Motor & Idler Assembly


13 - Ct Control Center Components


14 - Control Center Components


15 - Ticket Receiver Components


16 - Export Parts (240v-50hz)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y330073		Valve, Shut-off	00	Appelez-nous	-
002	NLA		Manifold For Main Burner	00	Appelez-nous	-
003	Y330174		Electronic Ignition Control	00	Appelez-nous	-
004	Y330175		Pilot Burner	00	Appelez-nous	-
005	Y330177		Burner Solenoid-main	00	Appelez-nous	-
006	Y330182		Burner Solenoid-pilot	00	Appelez-nous	-
007	NLA		Lockout Module	00	Appelez-nous	-
008	NLA		Pilot Orifice - Nat	00	Appelez-nous	-
009	Y330195		Pilot Orifice - Lpg	00	Appelez-nous	-
010	Y330219		Electronic Control Assembly	00	Appelez-nous	-
011	WP90767		Screw-switch Plate To Vault   (Replaces: 331026)	00		Immediately	$ 7.04
012	NLA		Bracket For Gas Control	00	Appelez-nous	-
013	NLA		Gas Supply Line-28 1/2 Inch	00	Appelez-nous	-
014	NLA		Pilot Line	00	Appelez-nous	-
