SELECT A DIAGRAM

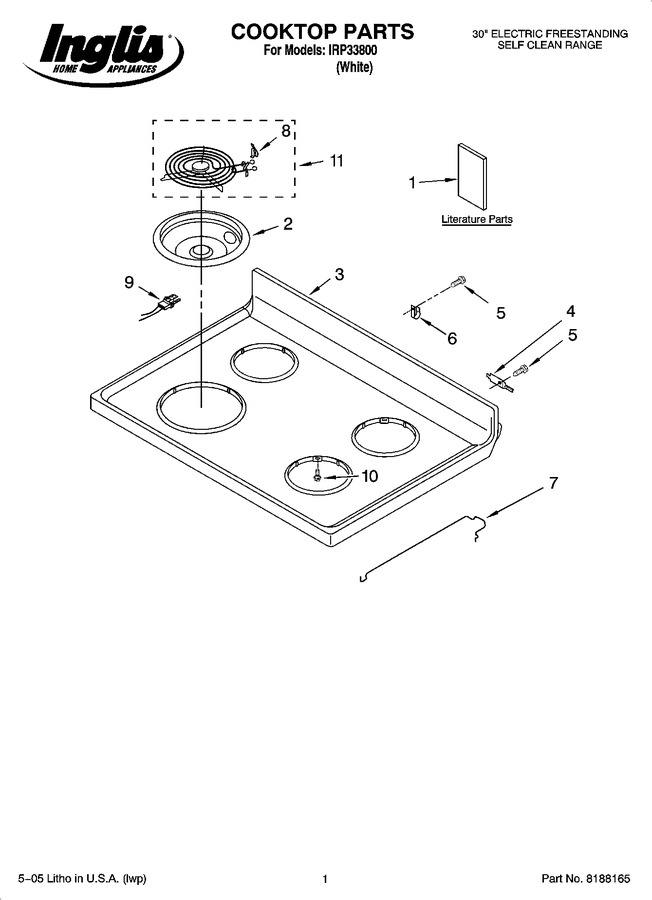

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9757896 | Tech Sheet |
|
- | |||||
| 1 | 9756848 | Instructions, Installation |
|
- | |||||
| 1 | 9757142 | Anti-tip Template (english/spanish) |
|
- | |||||
| 1 | 9757143 | Template,anti-tip (english/french) |
|
- | |||||
| 1 | 9761966 | Guide, Use & Care |
|
- | |||||
| 2 | WPW10290350 | Bowl, Drip (8`` Black) (Replaces: 3196203) |
|
Immediately | $ 15.25 | ||||
| 2 | W10290353RW | Bowl, Drip (6`` Black) (Replaces: 3196202) |
|
Immediately | $ 19.27 | ||||
| 3 | 8195532 | Cooktop (white) (Replaces: 3186231) |
|
$ 359.41 | |||||
| 4 | WP3195060 | Hinge, Cooktop (2) (Replaces: 3195060) |
|
Immediately | $ 11.30 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 6 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 10.08 | |||||
| 7 | WP3195812 | Rod, Support (2) (Replaces: 3195812) |
|
Immediately | $ 7.48 | ||||
| 8 | WP3195917 | Clip, Spring (Replaces: 3195917) |
|
Immediately | $ 6.96 | ||||
| 9 | 814399 | Receptacle, Elmnt. |
|
Immediately | $ 38.87 | ||||
| 10 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.04 | |||||
| 11 | WPW10259865 | Element, Surface (8`` (2)) (Replaces: 9761345) |
|
Immediately | $ 105.92 | ||||
| 11 | WP660532 | Element, Surface (6`` (2)) (Replaces: 9761347) |
|
Immediately | $ 36.90 |
