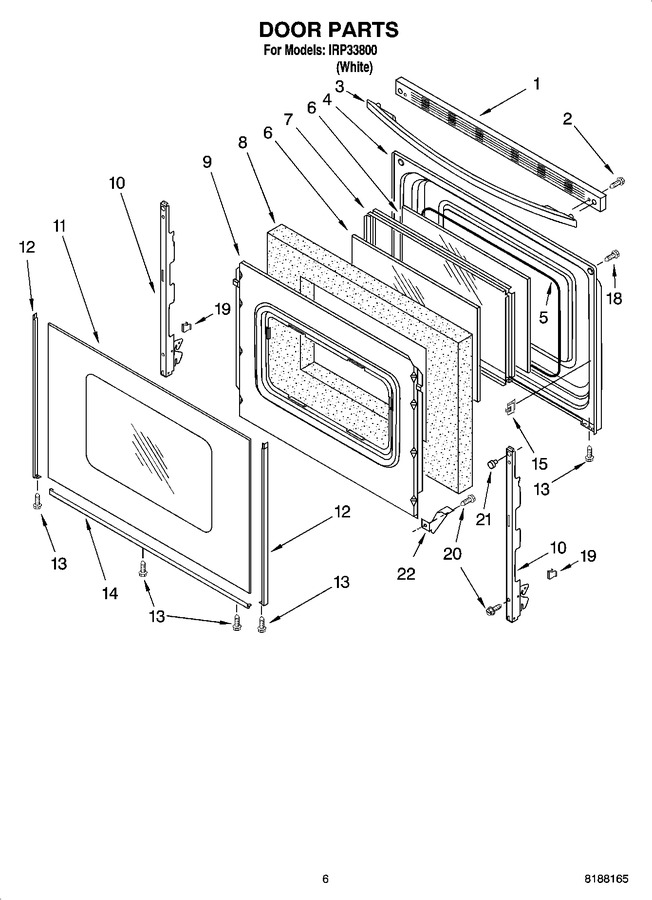

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8522433		Trim, Top (white)		Appelez-nous	-
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 7.82
3	WPW10202216		Handle, Door (white)   (Replaces: 8522444)				$ 317.72
4	3186292		Liner, Door		Appelez-nous	-
5	8522414		Seal, Window				$ 160.59
6	WP8053948		Glass, Inner (2)   (Replaces: 9758162)				$ 160.45
7	WPW10316950		Frame, Glass   (Replaces: 3186289)			Immediately	$ 76.37
8	WPW10278991		Insulation, Door   (Replaces: 8272618)			Immediately	$ 86.89
9	W11539580		Retainer, Insul.   (Replaces: 3186297)				$ 199.17
10	WP8053807		Hinge, Door (2)   (Replaces: 8053807)				$ 81.73
11	WP8053834		Glass, Outer (white)   (Replaces: 8053480)				$ 250.16
12	WP8523172		Trim, Side (white Right Hand)   (Replaces: 8523172)			Immediately	$ 62.94
12	WP8523166		Trim, Side (white Left Hand)   (Replaces: 8523166)			Immediately	$ 75.81
13	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
14	W11594186		Trim, Lower (white)   (Replaces: 8523175)			Immediately	$ 52.61
15	3196025		Clip, Glass (4)				$ 20.10
18	WP179051		Screw   (Replaces: 3196161)			Immediately	$ 7.16
19	3196925		Clip, Door Stop				$ 9.06
20	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.47
21	238614		Bumper, Door (2)   (Replaces: 3195809)				$ 72.68
22	3196794		Bracket, Window (2)				$ 24.34
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	3184478		Cleaner, Glass		Appelez-nous	-
	W11447673		Anti-tip Kit   (Replaces: 9757976)			Immediately	$ 28.64
	9761472		Harness, Wire (cooktop)		Appelez-nous	-
	9758297		Harness, Wire (oven Light)		Appelez-nous	-
	9758180		Harness, Wire, Door Switch/sensor		Appelez-nous	-
	9756350		Cord, Power				$ 60.82
	9756779		Relief, Strain		Appelez-nous	-
	W11244557		Screw   (Replaces: 3196173)				$ 12.25
	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
	3184020		Wire, Ground   (Replaces: 311227)				$ 74.50
	WP3196154		Screw   (Replaces: 3196154)				$ 7.04
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 74.76
	261582		Grease		Appelez-nous	-
	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 23.81
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)			Immediately	$ 51.34
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922)				$ 80.69
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
