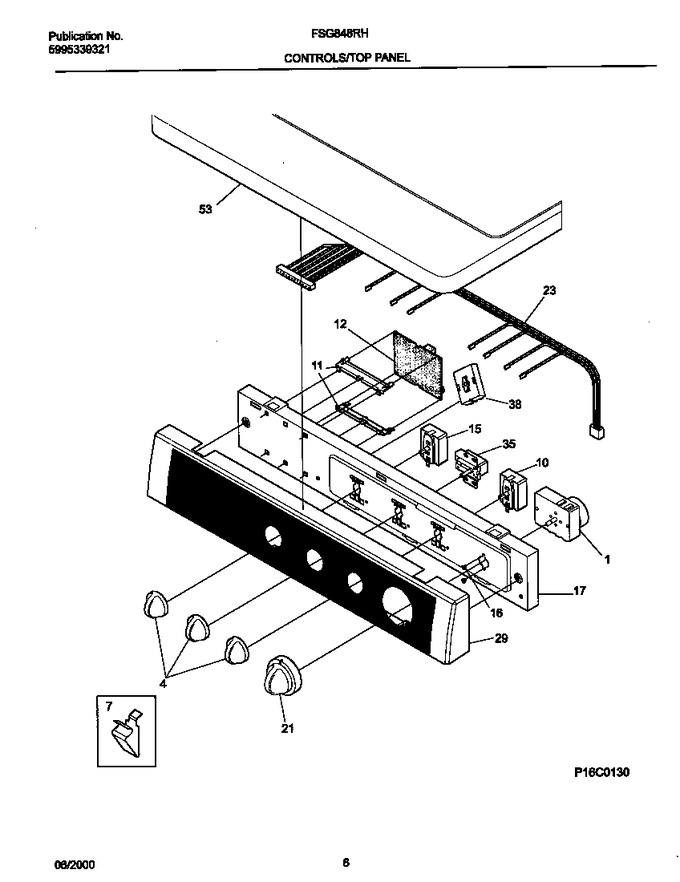

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131930600 | Timer-dryer ``t`` |
|
$ 320.98 | |||||
| 4 | 131965301 | Knob-rot-dryer Bsq |
|
- | |||||
| 7 | 3205821 | Clip-top Panel, To Front Panel |
|
Immediately | $ 35.44 | ||||
| 10 | 134398300 | Switch-start (Replaces: 131447800) |
|
Immediately | $ 77.82 | ||||
| 11 | 131587400 | Bracket-control Board,(2) |
|
$ 44.40 | |||||
| 12 | 131620200 | Control Board,moisture Sensor |
|
- | |||||
| 15 | 131641900 | Switch-temperature |
|
- | |||||
| 16 | 218359202 | Screw,cr Pan Head `8-32 X 0.250 ,thread Forming (Replaces: 5303283289) |
|
$ 10.63 | |||||
| 17 | 131941000 | Brkt-cont Mtg-stack Dryer |
|
- | |||||
| 21 | 131947303 | Asmy-knob/ind Bsq |
|
- | |||||
| 23 | 131940700 | Harness-fsd Cont Trh Gas |
|
- | |||||
| 29 | 131666930 | Asmy-cons Frame/tape/trim |
|
- | |||||
| 38 | 131959200 | Beeper Continuous Low Tone |
|
$ 134.82 | |||||
| *07047 | 131636900 | Harness-main |
|
$ 196.56 |
