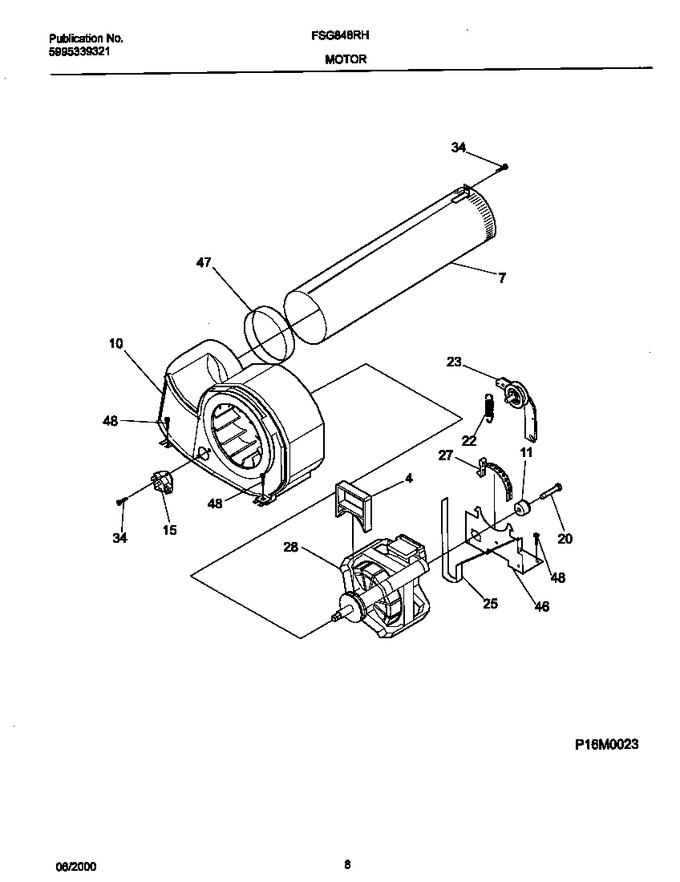

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	131435200		Lock-fan Housing				$ 73.02
7	131451600		Tube-exhaust				$ 54.02
10	131775600		Asmy-blwr Hsg/cov/wheel			Immediately	$ 155.43
11	131749800		Spacer-idler				$ 43.95
15	131637800		Thermostat-control		Appelez-nous	-
20	131017900		Screw-spacer, Hex Head, 1/4-20t X 1.25, Thread Cutting				$ 14.46
22	131601000		Spring-idler			Immediately	$ 82.20
23	131863007		Asmy-idler Arm   (Replaces: 131863000)			Immediately	$ 43.05
25	134503600		Belt-dryer   (Replaces: 5303283471)			Immediately	$ 18.79
27	131419800		Clamp-motor				$ 8.18
28	131560100		Motor-main, W/pulley				$ 267.34
34	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
46	131601100		Bracket-motor		Appelez-nous	-
47	131633300		Seal-exhaust Tube				$ 19.06
48	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
*07048	131456800		Tube Assy, Exhaust				$ 36.29
