SELECT A DIAGRAM

Diagram for 01 - Cooktop Parts
01 - Cooktop Parts

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Chassis Parts
03 - Chassis Parts

Diagram for 04 - Drawer And Rack Parts
04 - Drawer And Rack Parts

Diagram for 05 - Door Parts
05 - Door Parts

Diagram for 06 - Optional Parts (not Included)
06 - Optional Parts (not Included)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10282492 Rack, Oven (2)   (Replaces: 74001757) In-Stock Immediately $ 65.15

2 WP3405F037-80 Drawer, Storage   (Replaces: 3405F033-80) Special Order $ 304.98

3 WP7101P072-60 Screw, Panel   (Replaces: 74004310) Special Order $ 6.77

4 74010896 Bracket, Drawer Appelez-nous -
5 W10194229 Panel, Drawer Appelez-nous -
6 W10828565 Screw, Panel   (Replaces: 74009539) Special Order $ 6.70

7 74005230 Nut, Lock Special Order $ 12.02

8 W10184494 Handle,storage Dwr Special Order $ 65.42

9 WP74005546 Spacer, Rubber   (Replaces: 74005546) Special Order $ 9.48

10 WP74004078 Roller, Drawer (2)   (Replaces: 74004078) In-Stock Immediately $ 10.70

11 74005231 Shaft, Roller (2) Special Order $ 9.23

12 WP488130 Nut   (Replaces: 7103P082-60) Special Order $ 6.27


    View Diagram in Separate Window     Print Icon   Print Part List

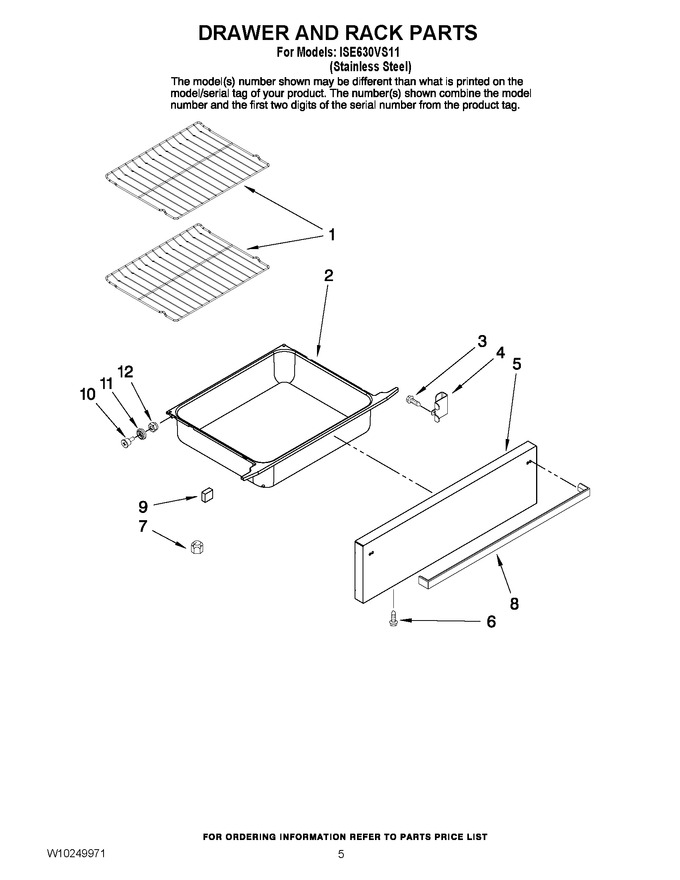

Diagram for ISE630VS11
