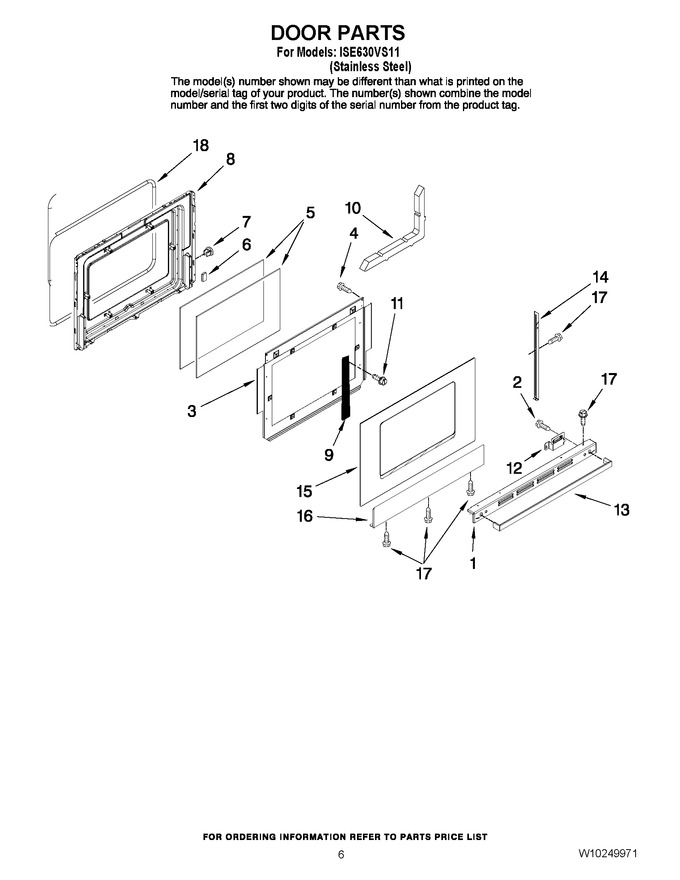

05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10165419		Trim, Door Top		Appelez-nous	-
2	WP74006515		Screw, Handle (2)   (Replaces: 74011674)				$ 7.29
3	74009528		Baffle, Retainer		Appelez-nous	-
4	W11233072		Screw, 8ab X 1/2   (Replaces: 74001530)			Immediately	$ 12.62
5	74003320		Glass, Inner (2)				$ 86.35
6	WP74005546		Spacer, Rubber   (Replaces: 74005546)				$ 9.48
7	WP74001574		Nut, Snap (4)   (Replaces: 74001574)			Immediately	$ 9.91
8	74004972		Lining, Door		Appelez-nous	-
9	74011458		Bracket, Glass (2)		Appelez-nous	-
10	74001842		Insulation, Door		Appelez-nous	-
11	WP90767		Screw   (Replaces: Y700502)			Immediately	$ 7.04
12	3801F832-45		Bracket, Handle (left)   (Replaces: 74009699)				$ 19.12
12	3801F831-45		Bracket, Handle (right)   (Replaces: 74009698)				$ 19.17
13	W10184494		Handle, Door				$ 65.42
14	74009692		Trim, Door Side (right)		Appelez-nous	-
14	74009693		Trim, Door Side (left)		Appelez-nous	-
15	W10197688		Glass, Door		Appelez-nous	-
16	W10190750		Panel, Oven Door (bottom)				$ 155.24
17	N/P		Screw, Trim		Appelez-nous	-
18	WPW10162384		Seal, Door   (Replaces: W10162384)			Immediately	$ 77.61
