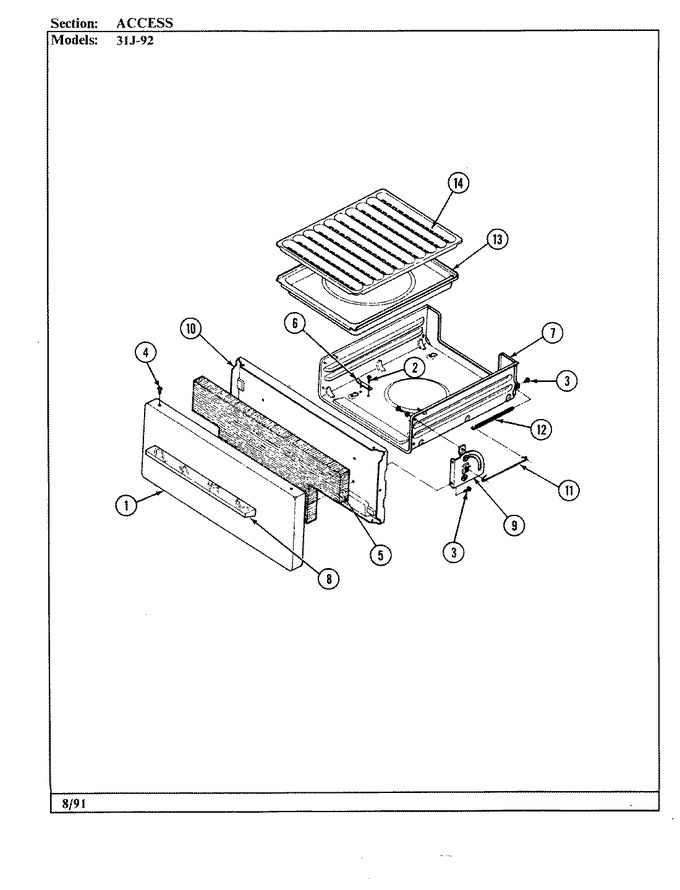

01 - Access Drawer
02 - Body/control Panel/top Assy.
03 - Control Panel
04 - Control System
05 - Door
06 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2416F025-71 | Panel, Drawer (wht) | 01 |
|
- | ||||
| 2 | 7103P067-60 | Lock Nut, Catch | 01 |
|
- | ||||
| 2 | 7101P065-60 | Screw | 01 |
|
- | ||||
| 3 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 4 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 5 | 7002P002-60 | Insulation | 01 |
|
- | ||||
| 6 | 8002P001-60 | Catch | 01 |
|
- | ||||
| 7 | 3407W009-19 | Broiler Drawer Assy. | 01 |
|
- | ||||
| 7 | 7101P114-60 | Screw | 01 |
|
- | ||||
| 8 | 74002481 | Screw, Handle (Replaces: 7101P283-60) | 01 |
|
$ 5.82 | ||||
| 8 | 2411F003-71 | Handle, Door (wht) | 01 |
|
- | ||||
| 9 | 3418A062-34 | Hinge, Broiler (rt) | 01 |
|
- | ||||
| 9 | 3418A063-34 | Hinge, Broiler (lt) | 01 |
|
- | ||||
| 10 | 2404F021-19 | Lining, Broiler Drawer | 01 |
|
- | ||||
| 11 | 7807P001-60 | Link, Broiler | 01 |
|
- | ||||
| 12 | 7803P014-60 | Spring | 01 |
|
- |
