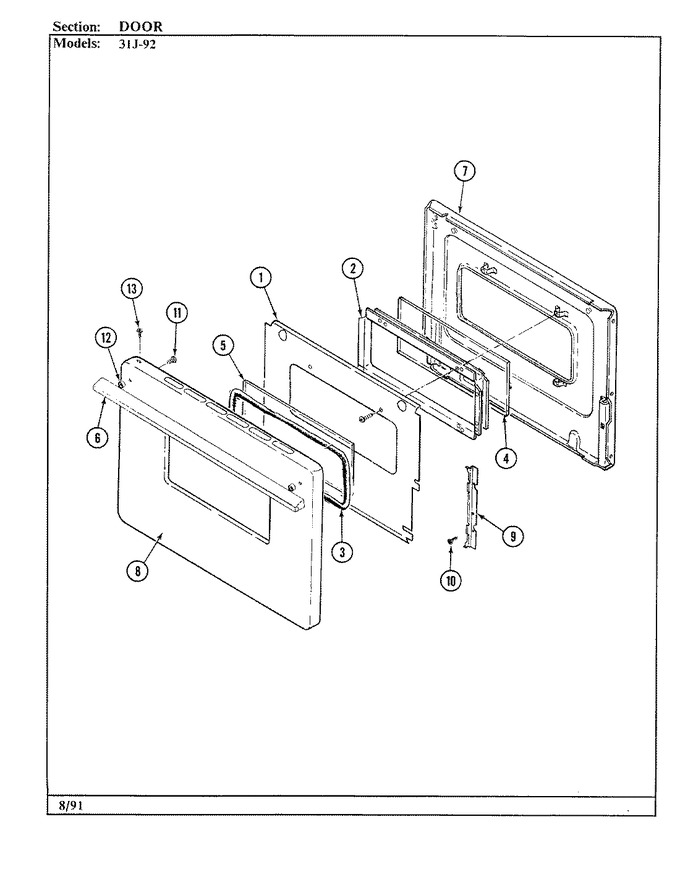

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F094-51 | Baffle, Oven Door | 01 |
|
- | ||||
| 2 | 3603F013-80 | Frame, Window----na | 01 |
|
- | ||||
| 3 | 7201P017-60 | Gasket, Window | 01 |
|
$ 52.69 | ||||
| 4 | 7902P035-60 | Glass, Door Inner | 01 |
|
- | ||||
| 5 | 7902P326-60 | Glass, Door (outer) | 01 |
|
- | ||||
| 6 | 4804F021-60 | Insulation, Door | 01 |
|
- | ||||
| 6 | 2411F003-71 | Handle, Door (wht) | 01 |
|
- | ||||
| 7 | 2402W154-19 | Lining, Oven Door | 01 |
|
- | ||||
| 8 | 2401F042-71 | Panel, Door (wht) | 01 |
|
- | ||||
| 9 | 3804F095-80 | Retainer, Glass | 01 |
|
- | ||||
| 10 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 11 | WP3387230 | Screw, Clamp (Replaces: 7101P080-60) | 01 |
|
Immediately | $ 7.69 | |||
| 12 | 8010P002-60 | Spacer, Handle | 01 |
|
- | ||||
| 13 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 01 |
|
Immediately | $ 6.85 |
