SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System Parts

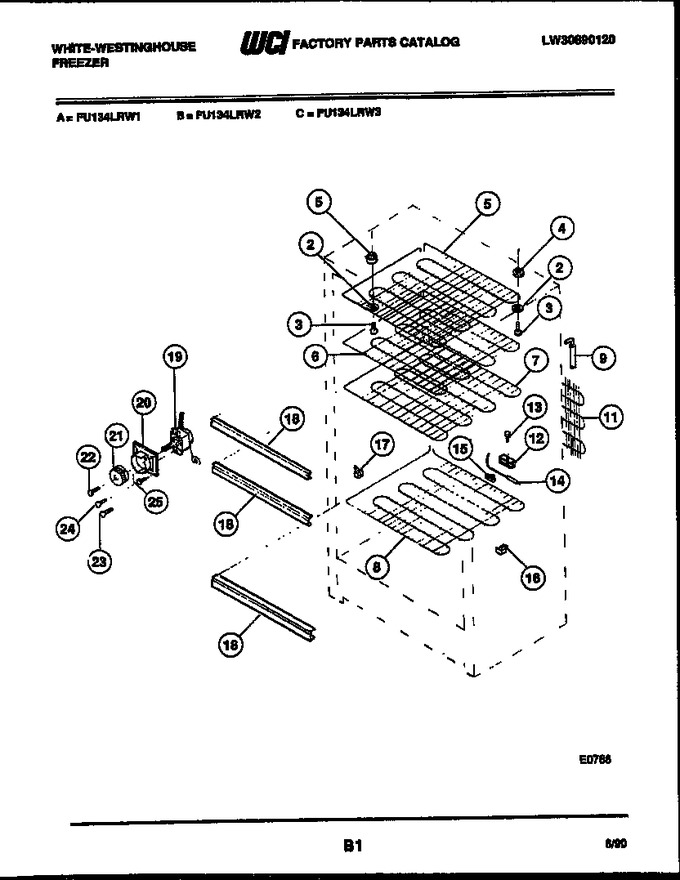

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	F81445		Spacer, Front		Appelez-nous	-
2	F55598		Washer (3)		Appelez-nous	-
3	F126260		Screw (3)		Appelez-nous	-
4	F56640		Spacer, Rear		Appelez-nous	-
5	F121174		Top Grid		Appelez-nous	-
6	F121175		First Shelf		Appelez-nous	-
7	F125270		Second Shelf		Appelez-nous	-
8	F121177		Bottom Shelf		Appelez-nous	-
9	F125274		Heat Exchanger		Appelez-nous	-
10	F58148-58		Insulation		Appelez-nous	-
11	F123788		Condenser-(not Original Equipment. Service Replacement		Appelez-nous	-
12	F96850		Clamp		Appelez-nous	-
13	F52943		Screw		Appelez-nous	-
14	F129728		Sleeve		Appelez-nous	-
15	F117447		Support Rear		Appelez-nous	-
16	F300590		Support Rh (3)		Appelez-nous	-
17	F300592		Support Lh (3)		Appelez-nous	-
18	F300385		Front Shelf (3)		Appelez-nous	-
19	F126974		Control Temperature		Appelez-nous	-
20	F128633		Housing		Appelez-nous	-
21	F127717		Knob		Appelez-nous	-
22	F110410		Screw Knob		Appelez-nous	-
23	F55160		Screw Control		Appelez-nous	-
24	F99483		Screw Housing		Appelez-nous	-
25	F99483		Screw-ground Wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
