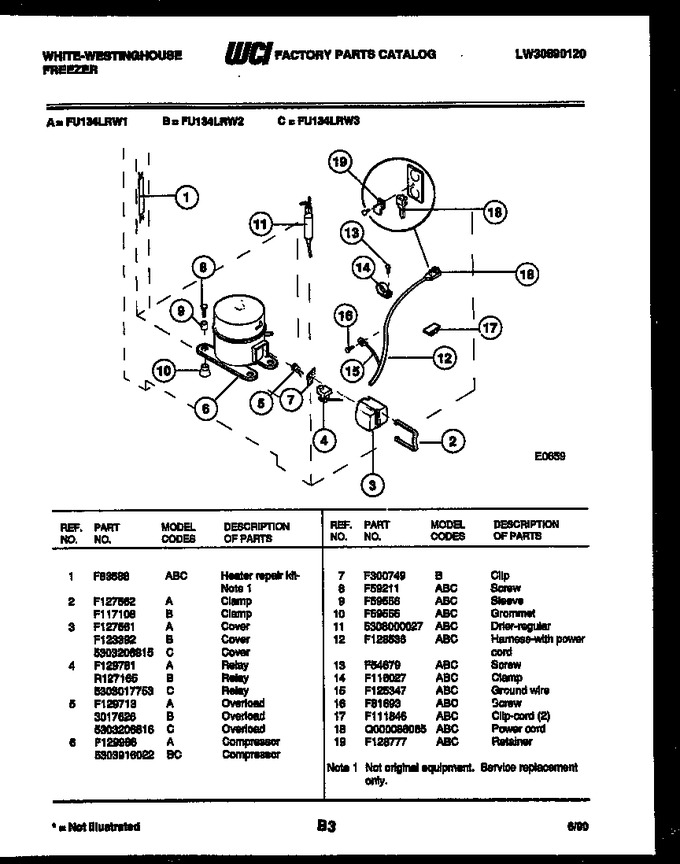

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | F83588 | Heater Repair Kit-(not Original Equipment. Service Repl |
|
- | |||||
| 2 | F117108 | Clamp |
|
- | |||||
| 3 | F123392 | Cover |
|
- | |||||
| 4 | R127165 | Relay |
|
- | |||||
| 5 | 3017626 | Overload |
|
- | |||||
| 6 | 5303916022 | Compressor |
|
- | |||||
| 7 | F300749 | Clip |
|
- | |||||
| 8 | F59211 | Screw |
|
- | |||||
| 9 | F59556 | Sleeve |
|
- | |||||
| 10 | F59555 | Grommet |
|
- | |||||
| 11 | 5303305677 | Drier-regular (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 12 | F128536 | Harness-with Power Cord |
|
- | |||||
| 13 | F54679 | Screw |
|
- | |||||
| 14 | F116027 | Clamp |
|
- | |||||
| 15 | F125347 | Ground Wire |
|
- | |||||
| 16 | F81693 | Screw |
|
- | |||||
| 17 | F111846 | Clip-cord (2) |
|
- | |||||
| 18 | Q000086065 | Power Cord |
|
- | |||||
| 19 | F128777 | Retainer |
|
- |
