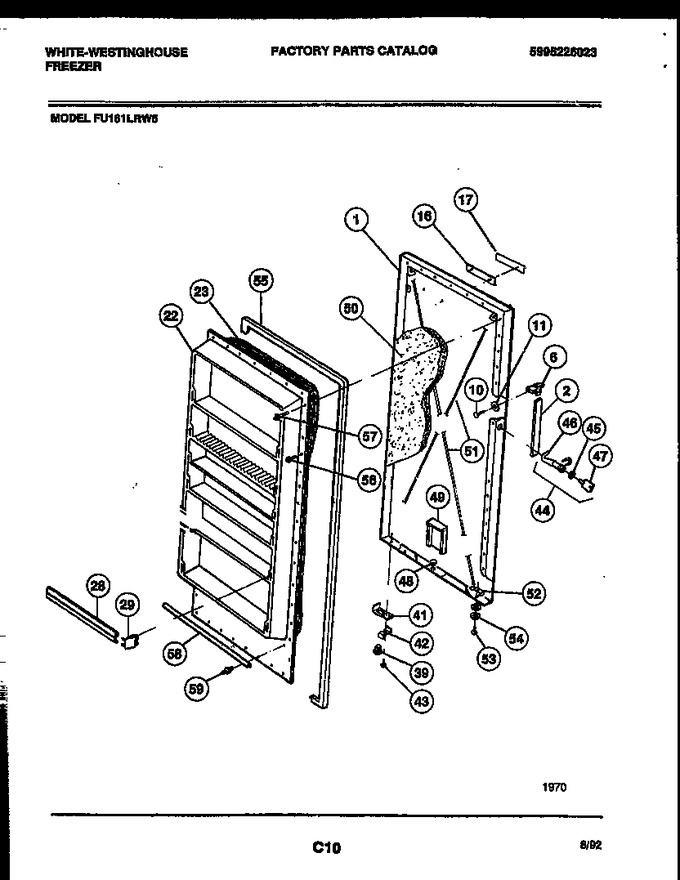

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	F0129287-S		Door-panel (white)		Appelez-nous	-
2	3200979		Handle Door		Appelez-nous	-
6	5308016581		Handle End Cap				$ 18.45
10	08016582		Screw-handle		Appelez-nous	-
11	08016593		Washer Handle Screw		Appelez-nous	-
16	5303288341		Frame		Appelez-nous	-
17	3201002		Nameplate		Appelez-nous	-
22	216012601		Inner Panel (white)		Appelez-nous	-
23	09950831		Insulation		Appelez-nous	-
28	3200980		Shelf-front Narrow (5)		Appelez-nous	-
29	5309948967		End Cap-rh Narrow (5)		Appelez-nous	-
30	5309948968		End Cap Lh Narrow (5)		Appelez-nous	-
39	5303210403		Bearing, Bottom		Appelez-nous	-
41	5300091170		Reinforcement Dr Stop		Appelez-nous	-
42	08016354		Stop-door				$ 36.07
43	08005520		Screw-door Stop		Appelez-nous	-
44	5303925107		Lock-complete		Appelez-nous	-
45	5300114366		Washer-lock		Appelez-nous	-
46	216013800		Lock Hook		Appelez-nous	-
47	297147700		Key-lock (2)   (Replaces: 5308037402)			Immediately	$ 7.57
48	5309950074		Valve Breather (2)				$ 12.48
49	5300128421		Air Duct Breather		Appelez-nous	-
50	5303007739		Insulation, Door		Appelez-nous	-
51	08037953		Wire Adjusting (2)		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
53	5300057906		Screw, Bracket (2)		Appelez-nous	-
54	09950839		Washer, Bracket (2)		Appelez-nous	-
55	3206249		Gasket Door-gray		Appelez-nous	-
56	216858001		Screw-panel (24)   (Replaces: 5303161215)			Immediately	$ 10.85
57	08009384		Screw-panel (16)		Appelez-nous	-
58	06594682		Gasket		Appelez-nous	-
59	5303091422		Rivet-gasket (5)		Appelez-nous	-
39A	5306593364		Bearing-top		Appelez-nous	-
