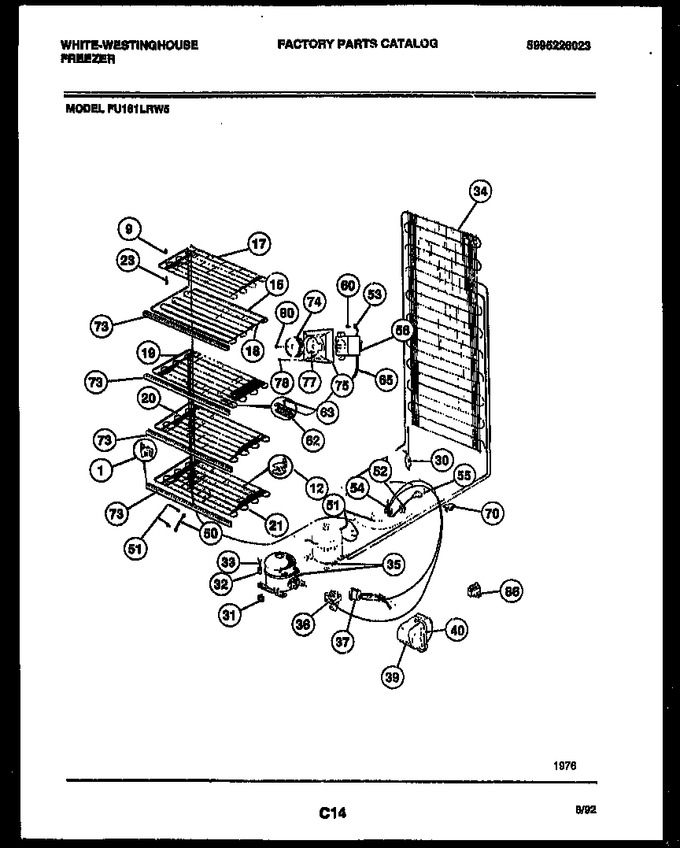

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	297001600		Support Front-lh (3)   (Replaces: 3091418)				$ 18.08
9	5300081445		Spcr-topgrid Front (2)		Appelez-nous	-
12	09949960		Support, Rear		Appelez-nous	-
15	08010753		Heat Exchanger		Appelez-nous	-
17	5300121179		Top Grid		Appelez-nous	-
18	08037939		First Shelf		Appelez-nous	-
19	08037940		Second Shelf		Appelez-nous	-
21	08037941		Bottom Shelf		Appelez-nous	-
23	08013446		Screw-top Grid (3)		Appelez-nous	-
30	5303305677		Dryer   (Replaces: 5308000027)			Immediately	$ 31.67
31	216498900		Grommet (4)   (Replaces: 5308002681)				$ 13.01
32	5306594529		Sleeve (3)				$ 10.34
33	08002679		Screw		Appelez-nous	-
34	5300123788		Condenser				$ 635.80
35	5303916411		Compressor		Appelez-nous	-
36	5303017753		Relay		Appelez-nous	-
37	5308037789		Overload		Appelez-nous	-
39	5303006411		Cover, Terminal		Appelez-nous	-
40	5303006412		Clamp Cover		Appelez-nous	-
50	06594651		Wire, Ground		Appelez-nous	-
51	08037851		Screw				$ 3.57
52	5303017718		Clamp-cord		Appelez-nous	-
53	5300125347		Ground Wire		Appelez-nous	-
54	08016368		Wiring Harness		Appelez-nous	-
56	216023000		Cold Control		Appelez-nous	-
59	08037401		Retainer-harness (3)				$ 2.85
60	08009412		Screw		Appelez-nous	-
62	08037931		Clamp-capillary		Appelez-nous	-
63	5300053943		Screw-clamp		Appelez-nous	-
65	5308037932		Sleeve-cap Tube		Appelez-nous	-
70	06599553		Clip, Wires		Appelez-nous	-
73	216045701		Shelf Trim (3)		Appelez-nous	-
74	216008602		Knob-control		Appelez-nous	-
75	08016370		Housing-control		Appelez-nous	-
77	08003539		Screw-control		Appelez-nous	-
78	08009412		Screw		Appelez-nous	-
80	09950853		Screw, Knob		Appelez-nous	-
86	216134800		Run Capacitor		Appelez-nous	-
1A	297001500		Support Front Rh (3) (non-illustrated)   (Replaces: 08037928)				$ 18.08
9A	08037929		Spcr-top Grid Rear (non-illustrated)		Appelez-nous	-
