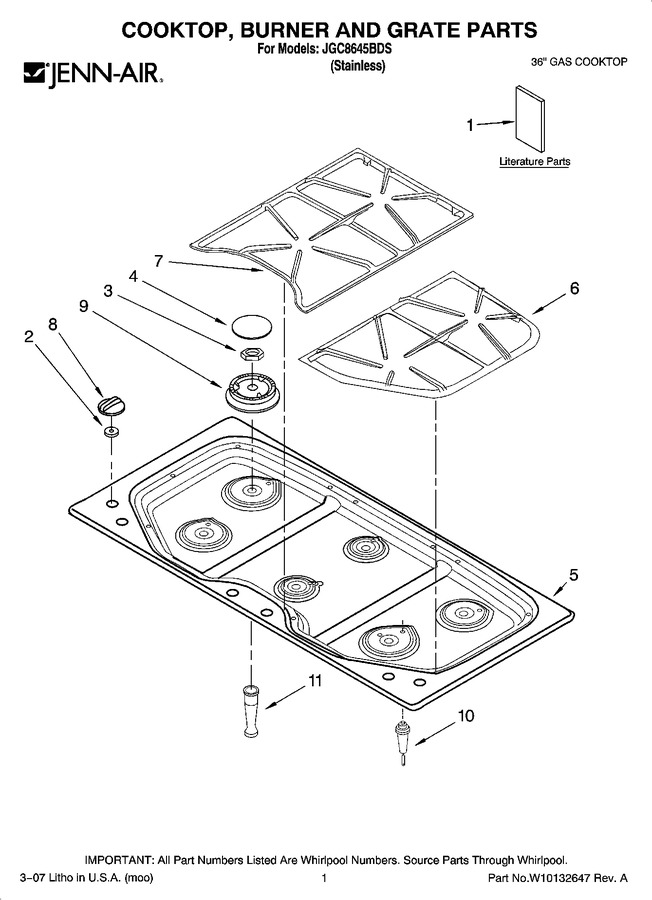

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74005527 | Use & Care Guide |
|
- | |||||
| 2 | WP74005934 | Grommet (Replaces: 74005934) |
|
$ 7.66 | |||||
| 3 | WP7103P178-60 | Nut, Mounting (Replaces: 71002746) |
|
$ 6.26 | |||||
| 4 | 74007203 | Cap, Burner (rf, Lr) |
|
$ 74.04 | |||||
| 4 | 74007191 | Cap, Burner (cf, Cr) |
|
- | |||||
| 4 | 74007196 | Cap, Burner (lf, Rr) |
|
$ 31.27 | |||||
| 5 | 74009565 | Top, Main |
|
- | |||||
| 6 | 74005936 | Grate, Burner (l.hand) |
|
- | |||||
| 6 | 74005935 | Grate, Burner (r.hand) |
|
- | |||||
| 7 | 74005980 | Grate, Center |
|
- | |||||
| 8 | W11246919 | Knob, Control (lf, Rt (4)) (Replaces: 74009567) |
|
$ 62.60 | |||||
| 8 | 74009566 | Knob, Control (center (2)) |
|
$ 17.21 | |||||
| 9 | WP7540P028-60 | Burner, Base (small (cf, Cr)) (Replaces: 74007181) |
|
$ 48.41 | |||||
| 9 | 74007182 | Burner, Base (medium (lf, Rr)) |
|
$ 49.55 | |||||
| 9 | 74007183 | Burner, Base (large (rf, Lr)) |
|
- | |||||
| 10 | WP7432P109-60 | Igniter (Replaces: 71002724) |
|
$ 47.83 | |||||
| 11 | WP7538P003-60 | Venturi (Replaces: 71002747) |
|
$ 88.55 |
