01 - Cooktop, Burner And Grate Parts

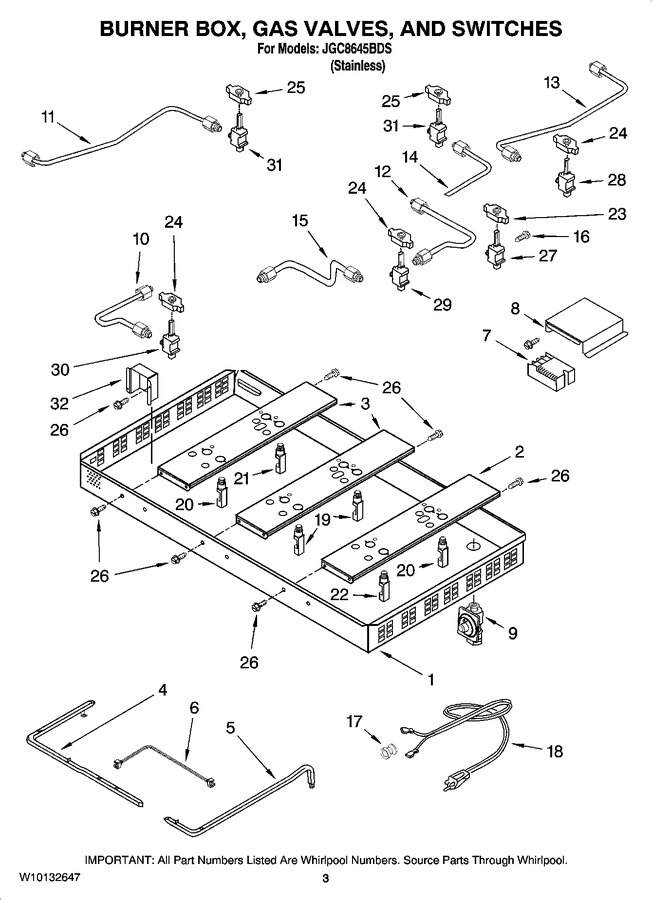

02 - Burner Box, Gas Valves, And Switches, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74009562 | Box, Burner |
|
- | |||||
| 2 | 74005976 | Rail, Burner (ctr) |
|
- | |||||
| 3 | 74005952 | Rail, Burner (side) |
|
- | |||||
| 4 | 74005971 | Pipe, Manifold (rt) |
|
- | |||||
| 5 | 74009650 | Pipe, Manifold (lt) |
|
- | |||||
| 6 | 74005972 | Tube, Crossover |
|
- | |||||
| 7 | WP71002749 | Module, Spark (Replaces: 71002749) |
|
$ 300.87 | |||||
| 8 | 74005933 | Cover, Spark Mod |
|
- | |||||
| 9 | W11106948 | Regulator, Prsr (Replaces: 704545) |
|
Immediately | $ 215.01 | ||||
| 10 | 74005948 | Tube, Burner (lf) |
|
- | |||||
| 11 | 74005949 | Tube, Burner (lr) |
|
- | |||||
| 12 | 74005950 | Tube, Burner (rf) |
|
- | |||||
| 13 | 74005951 | Tube, Burner (rr) |
|
- | |||||
| 14 | 74005974 | Tube, Burner (cf) |
|
- | |||||
| 15 | 74005975 | Tube, Burner (cr) |
|
- | |||||
| 16 | 71003231 | Screw, Valve |
|
- | |||||
| 17 | 705833 | Relief, Strain |
|
- | |||||
| 18 | 3188867 | Cord, Power (Replaces: 74007903) |
|
$ 168.08 | |||||
| 19 | 71002720 | Holder W/orifice (6.5k) (cntr) |
|
- | |||||
| 20 | 74005977 | Holder W/orifice (9.1k) (lf, Rr) |
|
- | |||||
| 21 | 74005978 | Holder W/orifice (10.5k) (lr) |
|
- | |||||
| 22 | 71003150 | Holder W/orifice (15k) (rf) |
|
- | |||||
| 23 | 74005953 | Switch, Igniter (lr) |
|
$ 109.43 | |||||
| 24 | WP74005954 | Switch, Igniter (Replaces: 74005954) |
|
$ 117.71 | |||||
| 25 | 74005979 | Switch, Igntr (ctr) |
|
- | |||||
| 26 | WP90767 | Screw (Replaces: 700502) |
|
Immediately | $ 7.04 | ||||
| 27 | 74005944 | Burner, Valve (lr) |
|
- | |||||
| 28 | 74005945 | Burner, Valve (lf) |
|
$ 172.63 | |||||
| 29 | 74005946 | Burner, Valve (rf) |
|
$ 113.91 | |||||
| 30 | 74005947 | Burner, Valve (rr) |
|
- | |||||
| 31 | 74005973 | Burner, Valve (ctr) |
|
- | |||||
| 32 | 74006339 | Brkt, Hold Down |
|
- | |||||
| 74005988 | Kit, Lp Orifice |
|
- | ||||||
| 74005964 | Harness, Spark (lt) |
|
- | ||||||
| 74005963 | Harness, Spark (rt) |
|
- | ||||||
| 74005961 | Harness, Main |
|
- |
