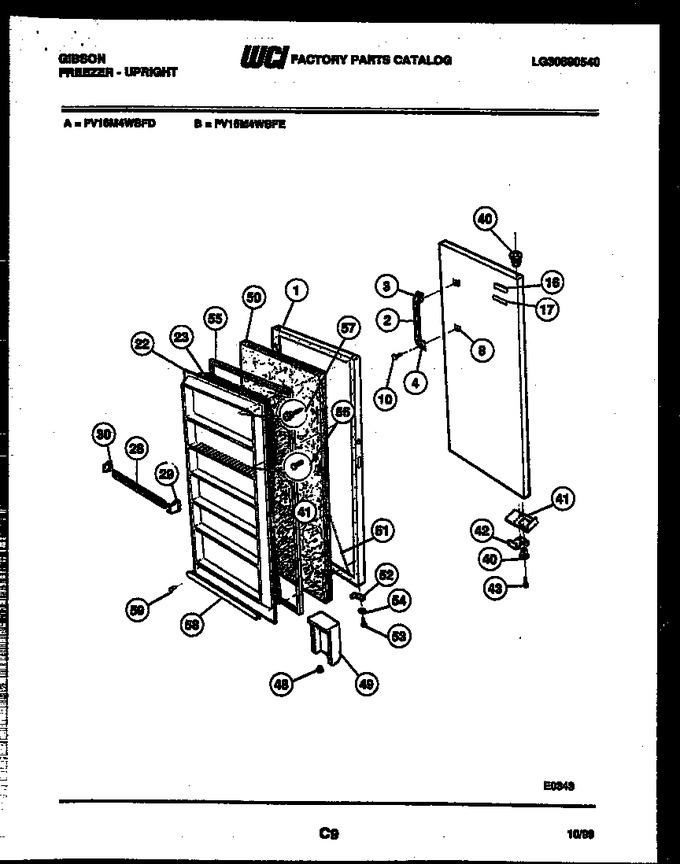

02 - Door Parts
03 - Cabinet Parts
04 - System And Electrical Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | F129293 | Door-exterior |
|
- | |||||
| 2 | F120973 | Handle-door |
|
- | |||||
| 3 | F129777 | End Cap-top |
|
- | |||||
| 4 | F129778 | End Cap-bottom |
|
- | |||||
| 8 | F119623 | Plate Reinforcement (2) |
|
- | |||||
| 10 | F110462 | Screw, Handle (2) |
|
- | |||||
| 16 | F128767 | Nameplate Bezel |
|
- | |||||
| 17 | F300246 | Insert Nameplate |
|
- | |||||
| 22 | F124566-95 | Panel-insert |
|
- | |||||
| 23 | 09950831 | Insulation Dike |
|
- | |||||
| 28 | 3017177 | Shelf-front Narrow |
|
- | |||||
| 29 | F126016 | End Cap-rh Narrow (5) |
|
- | |||||
| 30 | F126017 | End Cap-lh Narrow (5) |
|
- | |||||
| 40 | F126303 | Bearing, Bottom |
|
- | |||||
| 41 | F91170 | Reinforcement Dr Stop |
|
- | |||||
| 42 | 08016354 | Stop-door |
|
$ 36.07 | |||||
| 43 | F121387 | Screw-stop |
|
- | |||||
| 44 | 5300190358 | Lock-complete |
|
- | |||||
| 45 | F114366 | Washer-lock |
|
- | |||||
| 47 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 48 | F117926 | Valve Breather (2) |
|
- | |||||
| 49 | F128421 | Air Duct Breather |
|
- | |||||
| 50 | F116272 | Insulation Door |
|
- | |||||
| 51 | F129667 | Wire Adjusting (2) |
|
- | |||||
| 52 | F57880 | Bracket |
|
- | |||||
| 53 | F57906 | Screw, Bracket (2) |
|
- | |||||
| 54 | 09950839 | Washer, Bracket (2) |
|
- | |||||
| 55 | F129795 | Gasket-door |
|
- | |||||
| 56 | F54679 | Screw-panel (26) |
|
- | |||||
| 57 | 08009384 | Screw-panel (16) |
|
- | |||||
| 58 | 06594682 | Gasket |
|
- | |||||
| 59 | F300792 | Rivet-gasket (5) |
|
- | |||||
| 40A | 5306593364 | Bearing Top (2) |
|
- |
