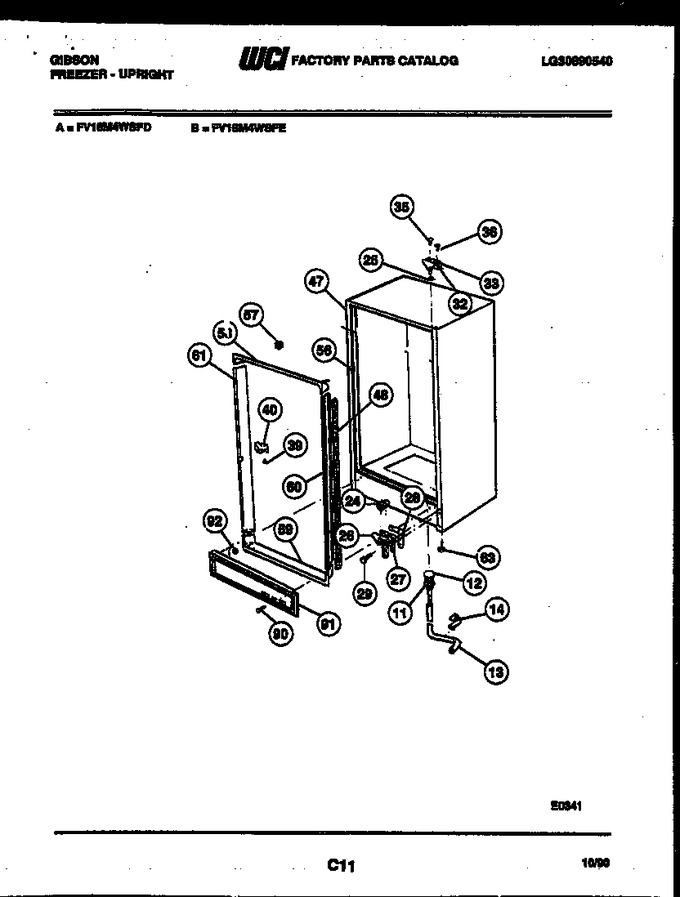

SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - System And Electrical Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	F121290		Drain		Appelez-nous	-
12	F89354		Plug Drain		Appelez-nous	-
13	F129678		Hose-drain		Appelez-nous	-
14	F122718		Clamp Drain Hose		Appelez-nous	-
24	F000900253		Ramp Door Closer		Appelez-nous	-
25	F57523		Bearing, Hinge (3)		Appelez-nous	-
26	F84943		Hinge, Bottom		Appelez-nous	-
27	5303207296		Spacer		Appelez-nous	-
28	F84948		Plate-bottom		Appelez-nous	-
29	154518001		Screw-hinge (3)   (Replaces: 5303205738)				$ 10.54
32	F93207		Plate-top		Appelez-nous	-
33	5308037946		Hinge-top				$ 56.91
35	F94110		Screw-hinge-front		Appelez-nous	-
36	08037848		Screw-hinge-rear		Appelez-nous	-
39	F54679		Screw-latch Catch		Appelez-nous	-
40	5309949966		Latch-catch		Appelez-nous	-
47	09950831		Insulation		Appelez-nous	-
56	F126240		Clip, Breaker (5)		Appelez-nous	-
57	F86536		Spacer, Top Breaker (2)		Appelez-nous	-
58	5308005501		Breaker Top		Appelez-nous	-
59	53080005512		Breaker-bottom		Appelez-nous	-
60	F121458-64		Breaker, Hinge		Appelez-nous	-
61	5308005512		Breaker Lock Side		Appelez-nous	-
63	F91169		Leveling Leg (4)		Appelez-nous	-
90	F118001		Pin Fastener (2)		Appelez-nous	-
91	F124799		Base Trim		Appelez-nous	-
92	F118003		Bumper (3)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
