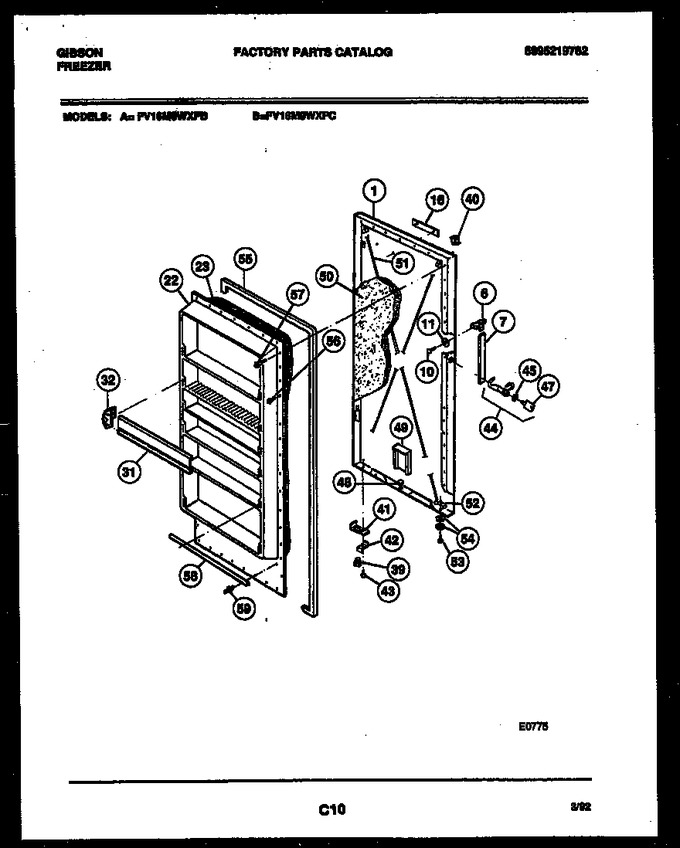

02 - Door Parts
03 - Cabinet Parts
04 - System And Electrical Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303208941 | Panel-door (white) |
|
- | |||||
| 6 | 3206058 | End Cap (2) |
|
- | |||||
| 7 | 5303208942 | Handle Grip |
|
- | |||||
| 10 | 08016582 | Screw Handle (2) |
|
- | |||||
| 11 | F52839 | Washer-handle Screw (2) |
|
- | |||||
| 16 | 5303208943 | Nameplate |
|
- | |||||
| 22 | 216012601 | Panel-inner (white) |
|
- | |||||
| 23 | 09950831 | Insulation |
|
- | |||||
| 31 | 5303208946 | Shelf-front Wide (4) |
|
- | |||||
| 31 | 5303208945 | Shelf-front Wide (1) |
|
- | |||||
| 32 | 5309948970 | End Cap, Rh, Wide (5) |
|
- | |||||
| 32 | 09948971 | End Cap-lh |
|
- | |||||
| 39 | 5303210403 | Bearing, Bottom |
|
- | |||||
| 40 | 5306593364 | Bearing-top |
|
- | |||||
| 41 | F91170 | Reinforcement Dr Stop |
|
- | |||||
| 42 | F124623 | Door Stop |
|
- | |||||
| 43 | F121387 | Screw, Door Stop (2) |
|
- | |||||
| 44 | 5303925107 | Lock-complete |
|
- | |||||
| 45 | F114366 | Washer-lock |
|
- | |||||
| 47 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 48 | F117926 | Valve Breather (2) |
|
- | |||||
| 49 | F128421 | Air Duct Breather |
|
- | |||||
| 50 | 5303007739 | Insulation, Door |
|
- | |||||
| 51 | F129667 | Wire Adjusting (2) |
|
- | |||||
| 52 | 05879859 | Bracket |
|
- | |||||
| 53 | F57906 | Screw, Bracket (2) |
|
- | |||||
| 54 | F119827 | Washer Bracket (2) |
|
- | |||||
| 55 | 3206246 | Gasket Door (white) |
|
$ 238.51 | |||||
| 56 | 216858001 | Screw Door Panel (26) (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 57 | 216022800 | Screw-panel (16) |
|
- | |||||
| 58 | 06594682 | Gasket |
|
- | |||||
| 59 | F300792 | Rivet-gasket (5) |
|
- | |||||
| 16A | 5303208944 | Insert Nameplate (non-illustrated) |
|
- |
