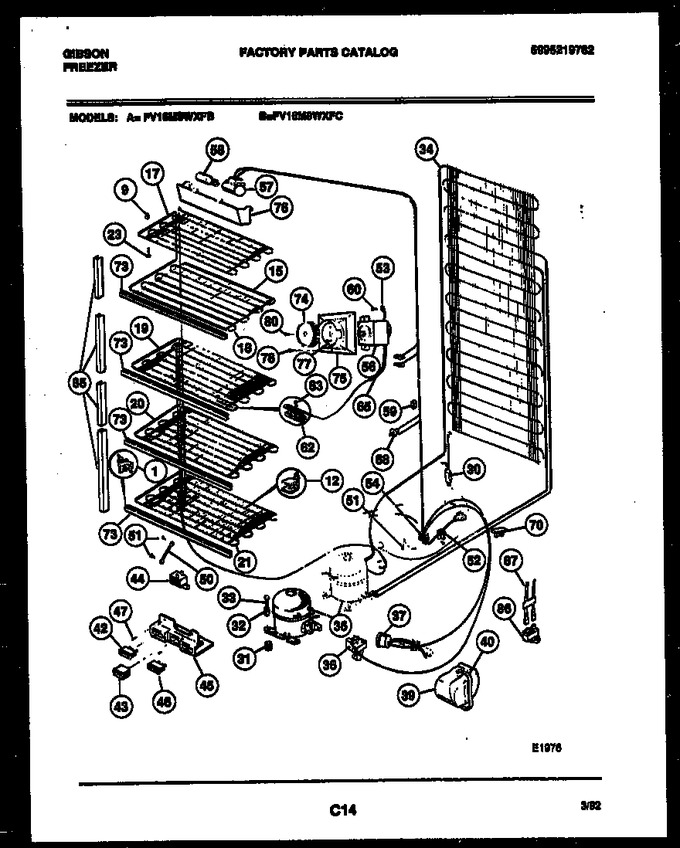

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | F300590 | Support-front Lh (3) |
|
- | |||||
| 2 | 297001500 | Support-front Rh (3) (Replaces: 08037928) |
|
$ 18.08 | |||||
| 9 | F81445 | Spcr-topgrid Front (2) |
|
- | |||||
| 10 | F56640 | Spacer, Rear |
|
- | |||||
| 12 | F117447 | Support Rear (6) |
|
- | |||||
| 15 | F125249 | Heat Exchanger |
|
- | |||||
| 17 | F121179 | Top Grid |
|
- | |||||
| 18 | 08037939 | First Shelf |
|
- | |||||
| 19 | 08037841 | Second Shelf |
|
- | |||||
| 21 | 08037940 | Bottom Shelf |
|
- | |||||
| 23 | F126260 | Screw (3) |
|
- | |||||
| 30 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 31 | F59555 | Grommet |
|
- | |||||
| 32 | F59556 | Sleeve |
|
- | |||||
| 33 | F59211 | Screw |
|
- | |||||
| 34 | 5300123788 | Condenser |
|
$ 635.80 | |||||
| 35 | 5303916411 | Compressor Service With Electricals |
|
- | |||||
| 36 | 5303017753 | Relay |
|
- | |||||
| 37 | 5308037789 | Overload |
|
- | |||||
| 39 | F123392 | Cover |
|
- | |||||
| 40 | F117108 | Clamp Cover |
|
- | |||||
| 42 | F128520 | Signal Light-amber |
|
- | |||||
| 43 | 5303017178 | Switch |
|
- | |||||
| 44 | 08016367 | Buzzer,alarm |
|
- | |||||
| 45 | 08016369 | Bracket-alarm |
|
- | |||||
| 46 | F128519 | Signal Light |
|
- | |||||
| 47 | 08037851 | Screw (2) |
|
$ 3.57 | |||||
| 50 | F95424 | Ground Wire |
|
- | |||||
| 51 | F99483 | Screw |
|
- | |||||
| 52 | F116027 | Clamp-cord |
|
- | |||||
| 53 | F125347 | Ground Wire |
|
- | |||||
| 54 | 5303208963 | Harness |
|
- | |||||
| 56 | 216023100 | Control-temp |
|
- | |||||
| 57 | F115515 | Socket |
|
- | |||||
| 58 | F92472 | Bulb |
|
- | |||||
| 59 | F112321 | Retainer-harness (3) |
|
- | |||||
| 60 | F99483 | Screw |
|
- | |||||
| 62 | F96850 | Clamp |
|
- | |||||
| 63 | F52943 | Screw |
|
- | |||||
| 65 | F129728 | Sleeve |
|
- | |||||
| 68 | F300589 | Light Switch |
|
- | |||||
| 70 | F111846 | Clip (2) |
|
- | |||||
| 74 | 216008704 | Knob |
|
- | |||||
| 75 | F128633 | Housing |
|
- | |||||
| 76 | 5303208964 | Light Shield |
|
- | |||||
| 77 | F55160 | Screw |
|
- | |||||
| 78 | F50149 | Screw |
|
- | |||||
| 80 | F110410 | Screw |
|
- | |||||
| 81 | F54679 | Screw |
|
- | |||||
| 85 | F117243-4 | Cover-tubes |
|
- | |||||
| 86 | 5303916391 | Capacitor-run |
|
- | |||||
| 87 | 5303280303 | Harness Capacitor |
|
- | |||||
| 46A | F300210 | Harness Alarm |
|
- | |||||
| 73A | 216045701 | Front Shelf (3) |
|
- |
