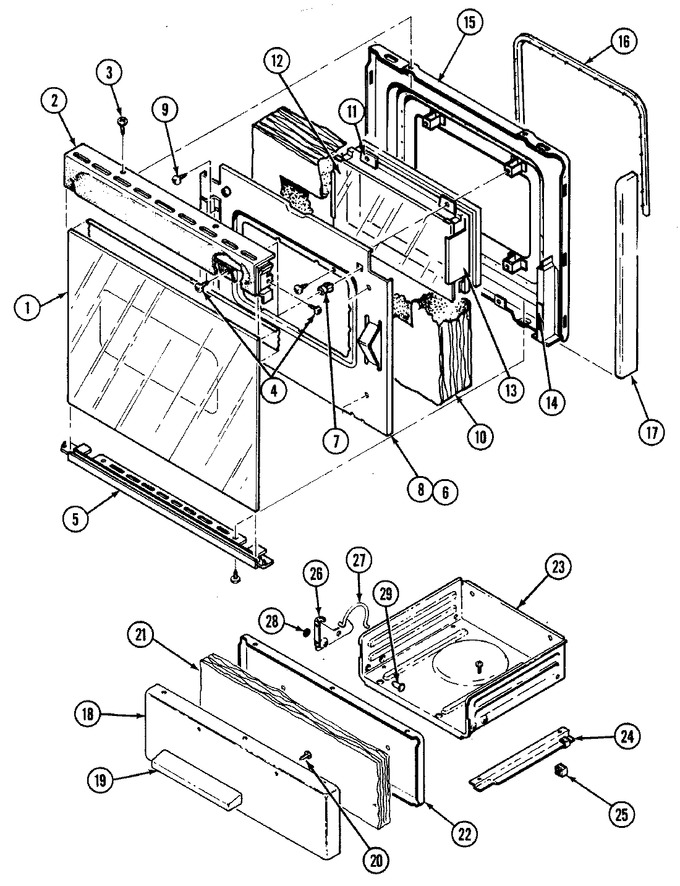

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P321-60		Glass, Door (blk)		Appelez-nous	-
2	7701P096-60		Handle, Door (blk)		Appelez-nous	-
3	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)				$ 15.94
4	7101P291-60		Screw		Appelez-nous	-
5	7744P078-60		Trim, Door (btm-blk)		Appelez-nous	-
6	8010P085-60		Spacer, Rubber		Appelez-nous	-
7	8010P075-60		Spacer		Appelez-nous	-
8	3601F219-45		Baffle, Door		Appelez-nous	-
9	W11233072		Screw   (Replaces: 7101P290-60)			Immediately	$ 12.62
10	4804F011-60		Insulation, Door		Appelez-nous	-
11	3603F036-80		Frame, Window		Appelez-nous	-
12	7902P319-60		Glass, Door (inner)----na		Appelez-nous	-
13	7907P016-60		Window Asy.		Appelez-nous	-
14	WP854334		Seal, Rubber   (Replaces: 7208P011-60)				$ 11.95
15	2402W185-16		Lining, Door		Appelez-nous	-
16	WP7212P043-60		Seal, Silicone   (Replaces: 7212P034-60)			Immediately	$ 56.83
17	7744P055-60		End Cap, Oven Door (blk)		Appelez-nous	-
18	7744P073-60		End Cap		Appelez-nous	-
18	2403F028-70		Panel, Drawer (blk)		Appelez-nous	-
19	WP2411F013-70		Handle, Drawer (blk)   (Replaces: 2411F003-70)				$ 186.01
20	74002481		Screw, Handle   (Replaces: 7101P283-60)				$ 5.82
21	4804F025-60		Insulation		Appelez-nous	-
22	2404F035-19		Lining, Broiler Drawer		Appelez-nous	-
23	3407F012-19		Drawer, Broiler		Appelez-nous	-
24	3404F023-51		Track, Drawer (rt)		Appelez-nous	-
24	3404F022-51		Track, Drawer (lt)		Appelez-nous	-
25	8016P012-60		Glide, Drawer Rear		Appelez-nous	-
25	8016P011-60		Glide, Drawer		Appelez-nous	-
26	3418F080-51		Hinge, Drawer (rt)		Appelez-nous	-
26	3418F079-51		Hinge, Drawer (lt)		Appelez-nous	-
27	7803P065-60		Spring, Hinge (rt)		Appelez-nous	-
27	7803P064-60		Spring, Hinge (lt)		Appelez-nous	-
28	7103P022-60		Nut, Grip		Appelez-nous	-
29	7113P012-60		Pin, Broiler Hinge		Appelez-nous	-
