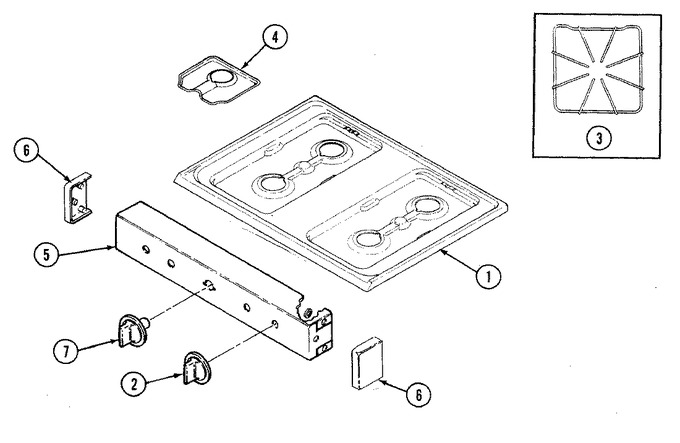

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001F098-30 | Top, Main (s.s) | 01 |
|
- | ||||
| 2 | WP7711P135-60 | Knob, Valve (blk) (Replaces: 7733P027-60) | 01 |
|
$ 25.06 | ||||
| 3 | 2003W026-00 | Grate (blk) | 01 |
|
- | ||||
| 4 | 1430283 | Drip Bowl Kit (accessory) (Replaces: 5401A433-60) | 01 |
|
$ 95.86 | ||||
| 5 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 5 | 7101P311-60 | Screw----na | 01 |
|
- | ||||
| 5 | 2616F095-09 | Panel, Manifold (blk) | 01 |
|
- | ||||
| 6 | 7713P018-60 | End Cap, Panel (blk) | 01 |
|
- | ||||
| 6 | 7112P092-60 | Clip, Spring Grip | 01 |
|
- | ||||
| 7 | 8113P011-60 | Manual, Use & Care | 01 |
|
- | ||||
| 7 | 7731P071-60 | Knob, Thermostat (blk) | 01 |
|
$ 39.24 |
