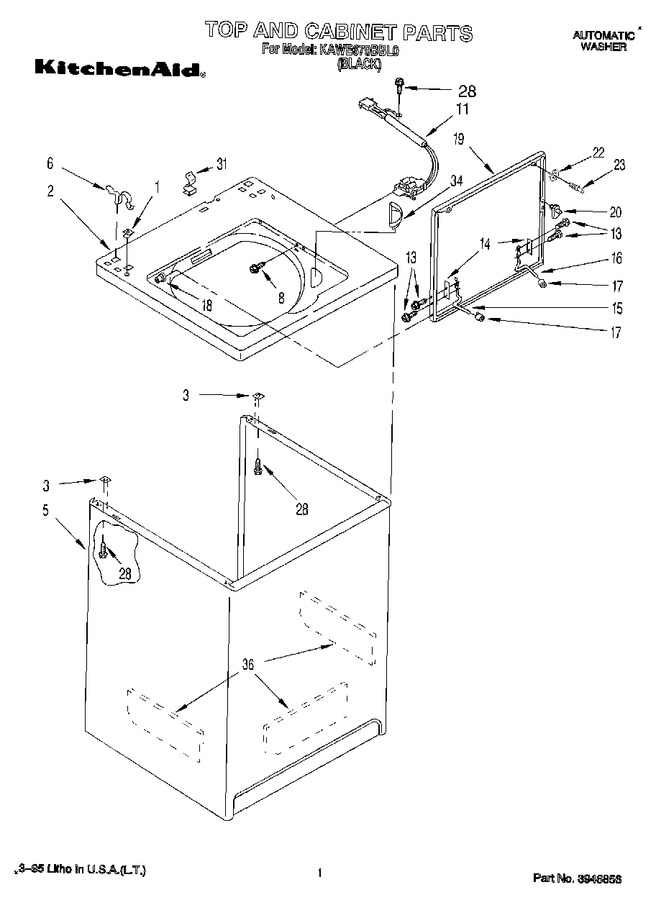

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 6.65 | |||||
| 2 | 3362478 | Top (for Black Model) |
|
- | |||||
| 3 | WP62750 | Spacer, Cabinet To Top (4) (Replaces: 62750) |
|
Immediately | $ 6.92 | ||||
| 5 | 3946852 | Cabinet (for Black Model) |
|
- | |||||
| 6 | WP62780 | Clip, Top & Cabinet & Rear Panel (2) (Replaces: 62780) |
|
Immediately | $ 7.02 | ||||
| 8 | WP3356311 | Screw & Washer, Lid Switch (2) (Replaces: 3356311) |
|
$ 6.98 | |||||
| 11 | 285671 | Switch, Lid (Replaces: 3352629) |
|
Immediately | $ 64.13 | ||||
| 13 | WPW10119828 | Screw, Lid Hinge Mounting (4) (Replaces: 3351355) |
|
Immediately | $ 6.47 | ||||
| 14 | WP21097 | Pad, Lid Hinge (2) (Replaces: 21097) |
|
$ 7.02 | |||||
| 15 | WP54584 | Hinge, Lid (l.h.) (Replaces: 54584) |
|
$ 30.09 | |||||
| 16 | WP54583 | Hinge, Lid (r.h.) (Replaces: 54583) |
|
$ 26.60 | |||||
| 17 | 19119 | Bumper, Lid Hinge |
|
$ 5.75 | |||||
| 18 | WP21258 | Bearing, Lid Hinge (2) (Replaces: 21258) |
|
Immediately | $ 6.87 | ||||
| 19 | 3362328 | Lid (for Black Model) |
|
- | |||||
| 20 | WP358684 | Strike, Lid Switch (Replaces: 358684) |
|
Immediately | $ 6.90 | ||||
| 22 | 3360787 | Bumper, Lid (1) |
|
- | |||||
| 23 | WP356907 | Rivet, Plastic (Replaces: 356907) |
|
$ 6.66 | |||||
| 28 | WP681414 | Screw, 10-16 X 1/2 (5) (Replaces: 384435) |
|
Immediately | $ 7.07 | ||||
| 31 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 10.19 | |||||
| 34 | WP3362952 | Bezel, Bleach Dispenser (Replaces: 3362952) |
|
Immediately | $ 10.88 | ||||
| 36 | 3349654 | Sound-damper (cabinet) |
|
- | |||||
| LIT3358952 | Sheet, Installation Instructions |
|
- | ||||||
| WP285195 | Sealer, Gasket (20 Fl. Oz.) (6 Ml) (Replaces: 285195) |
|
$ 93.95 | ||||||
| 350572 | Oil, Gearcase (16 Oz.) |
|
Immediately | $ 82.45 | |||||
| LIT3946874 | Guide, Use And Care |
|
- | ||||||
| 261891 | Golden Harvest (uncut) |
|
- | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 261890 | Golden Harvest |
|
- | ||||||
| WP384496 | Coupling, Hose (Replaces: 384496) |
|
$ 77.48 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | ||||||
| LIT3947699 | Wiring Diagram |
|
- | ||||||
| LIT3362790 | Energy Guide |
|
- | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 76660 | Siphon Break Kit (Replaces: 285320) |
|
Immediately | $ 119.93 | |||||
| 89121 | Stand-pipe Kit |
|
- | ||||||
| 367031 | Drain Protector |
|
- | ||||||
| 3348675 | Shipping Kit |
|
- | ||||||
| 285208 | Lubricant (use Only In Brake Shoe Assembly On Roller An D Pin) |
|
$ 41.86 |
