03 - Miscellaneous

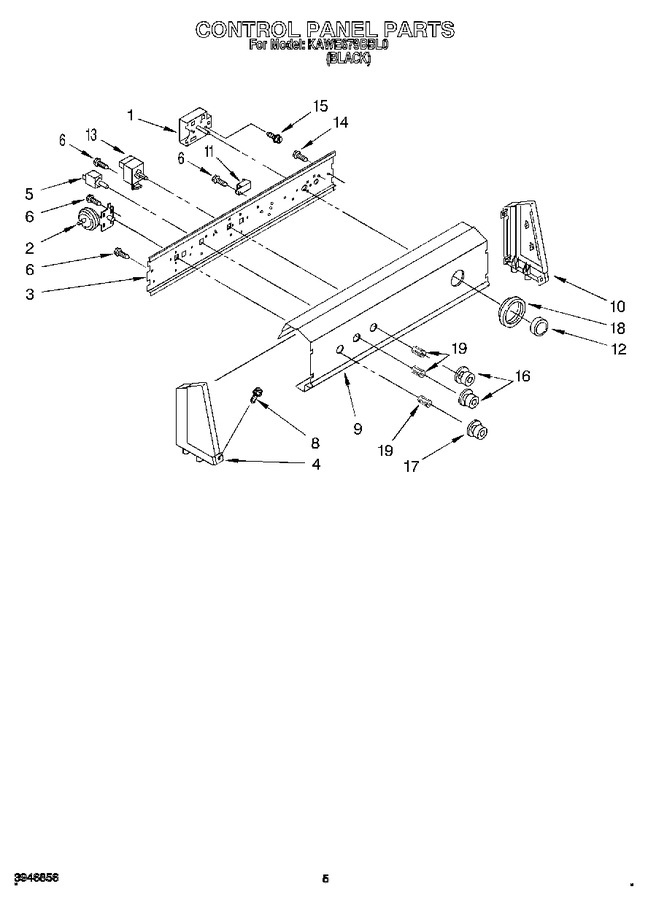

04 - Control Panel


05 - Brake, Clutch, Gearcase, Motor & Pump


06 - Agitator, Basket And Tub


07 - Machine Base


08 - Wiring Harness


09 - Gearcase


10 - Brake And Drive Tube


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3946476		Timer, Control 60hz. (motor Not Serviced)   (Replaces: 3362038)				$ 319.30
2	3362135		Switch, Water Level		Appelez-nous	-
3	WP3948608		Bracket, Control   (Replaces: 3360936)				$ 104.57
4	3360571		Cap, End (l.h.) (for Black Model)		Appelez-nous	-
5	334835		(alt.)		Appelez-nous	-
5	334711		(alt.)		Appelez-nous	-
5	3347122		Switch, Water Temperature		Appelez-nous	-
6	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
8	WP388326		Screw, 8-18 (2)   (Replaces: 64211)				$ 7.30
9	3363408		Console, Panel (for Black Model)		Appelez-nous	-
10	3360568		Cap, End (r.h.) (for Black Model)		Appelez-nous	-
11	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 114.90
12	3349233		Knob, Timer		Appelez-nous	-
13	3361225		Switch, Rotary		Appelez-nous	-
14	WP3351614		Screw, 10-24 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
15	WP356418		Screw (2)   (Replaces: 96435)				$ 7.13
16	3363041		Knob, Water Temperature		Appelez-nous	-
17	3363041		Knob (water Level)		Appelez-nous	-
18	3363039		Dial, Timer (for Black Model)		Appelez-nous	-
19	WP688805		Clip, Knob   (Replaces: 688805)			Immediately	$ 7.03

    View Diagram in Separate Window       Print Part List
