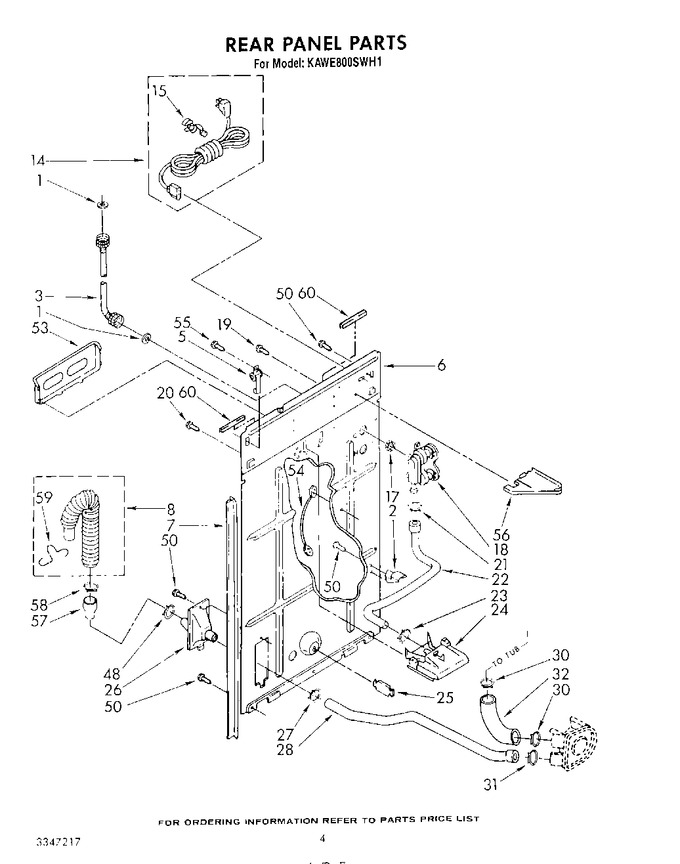

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) (1-1/16 X 5/8) (Replaces: 16123) |
|
$ 6.93 | |||||
| 2 | 63162 | Pin, Cabinet Guide (2) |
|
- | |||||
| 3 | WP89503 | Hose, Water Inlet (2) (Replaces: 81339) |
|
Immediately | $ 21.68 | ||||
| 5 | 387402 | Hinge, Console (2) |
|
$ 5.84 | |||||
| 6 | 3348430 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 23.63 | |||||
| 8 | 285664 | Hose, Drain (Replaces: 387325) |
|
Immediately | $ 33.20 | ||||
| 14 | W10820044 | Cord, Power (Replaces: 62734) |
|
$ 128.46 | |||||
| 15 | W11733005 | Strain Relief, Power Cord (Replaces: 63848) |
|
$ 11.64 | |||||
| 17 | WP96160 | Screen, Filter (2) (Replaces: 96160) |
|
$ 10.54 | |||||
| 18 | 285805 | Valve, Water Mixing (Replaces: 358992) |
|
Immediately | $ 49.57 | ||||
| 19 | WP3351614 | Screw, 10-24 X 3/8 (2) (Replaces: 90864) |
|
Immediately | $ 6.26 | ||||
| 20 | WP681414 | Screw, Ground (10-16 X 1/2) (Replaces: 359262) |
|
Immediately | $ 7.07 | ||||
| 21 | WP596669 | Clamp, Hose (Replaces: 272846) |
|
Immediately | $ 7.56 | ||||
| 22 | WP3357328 | Hose, Vacuum Break (Replaces: 62662) |
|
Immediately | $ 22.30 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 7.56 | ||||
| 24 | WP3360977 | Break, Vacuum (Replaces: 387606) |
|
Immediately | $ 45.41 | ||||
| 25 | WP8519200 | Support, Rear Panel (Replaces: 63290) |
|
Immediately | $ 17.01 | ||||
| 26 | WPW10358149 | Connector, Drain Hose (Replaces: 3349018) |
|
Immediately | $ 43.34 | ||||
| 27 | WP356138 | Clamp, Hose (Replaces: 272856) |
|
Immediately | $ 7.67 | ||||
| 28 | WP3348552 | Hose, Pump To Drain Connector (Replaces: 3348552) |
|
$ 76.37 | |||||
| 30 | WP371502 | Clamp, Hose (Replaces: 371502) |
|
$ 10.38 | |||||
| 31 | WP285655 | Clamp, Hose (Replaces: 272858) |
|
Immediately | $ 7.55 | ||||
| 32 | 285871 | Hose, Pump To Tub (Replaces: 62731) |
|
Immediately | $ 24.01 | ||||
| 48 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 50 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.04 | |||||
| 53 | 63020 | Rack, Literature |
|
$ 30.32 | |||||
| 54 | 364089 | Wire, Ground |
|
- | |||||
| 55 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 9416643) |
|
Immediately | $ 7.08 | ||||
| 56 | 3348424 | Sheild, Suds |
|
- | |||||
| 57 | WP384496 | Coupling, Hose (Replaces: 384496) |
|
$ 77.48 | |||||
| 58 | WP616099 | Clamp, Hose (Replaces: 371504) |
|
Immediately | $ 7.03 | ||||
| 59 | 357247 | Retainer, Wire |
|
- | |||||
| 60 | 303294 | Protector, Edge (2) |
|
- |
