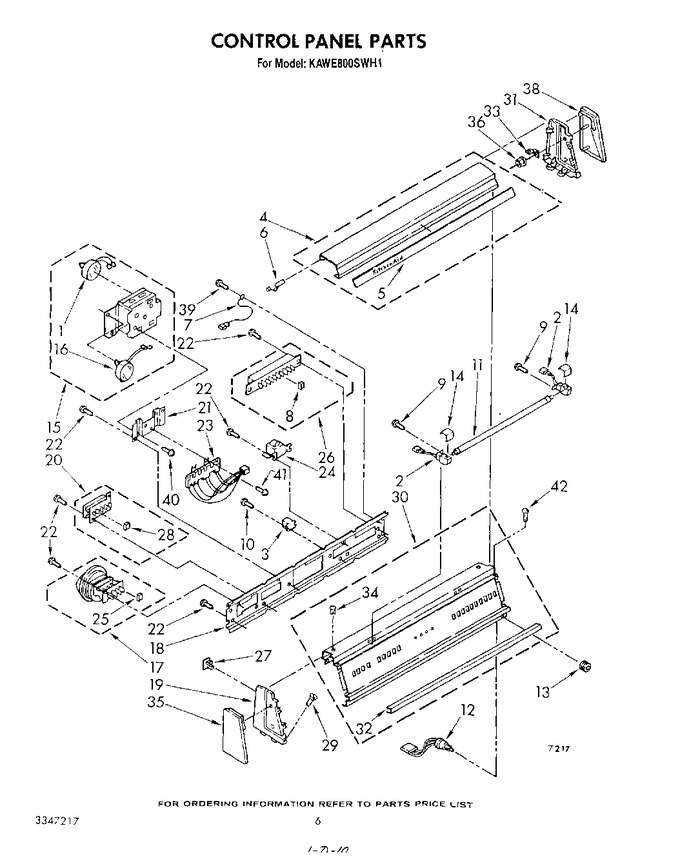

04 - Control Panel


05 - Agitator, Basket And Tub


06 - Miscellaneous


07 - Brake, Clutch, Gearcase, Motor And Pump


08 - Machine Base


09 - Wiring Harness


10 - Gearcase


11 - Brake And Drive Tube


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	388947		Motor, Rapid Advance Timer		Appelez-nous	-
2	389226		Socket, Fluorescent (l.h.)		Appelez-nous	-
2	389217		Socket, Fluorescent (r.h.)		Appelez-nous	-
3	389265		Realy 120 Vac		Appelez-nous	-
4	3348056		Pad, Console		Appelez-nous	-
5	3348053		Insert, Console Pad		Appelez-nous	-
6	3347112		Hinge, Lamp Cover		Appelez-nous	-
7	388853		Wire, Ground		Appelez-nous	-
8	697696		Pushbutton, Push To Start Switch (10)		Appelez-nous	-
9	WP965173		Screw, 8-18 X 5/16   (Replaces: 271096)			Immediately	$ 9.65
10	309258		Screw, 6 X 3/8 (hex Slot Head) (relay To Bracket)		Appelez-nous	-
11	387693		Lamp, Fluorescent		Appelez-nous	-
12	3347115		Switch, Flourescent		Appelez-nous	-
13	3347687		Nut, Knurled		Appelez-nous	-
14	3348529		Cover, Lamp Socket		Appelez-nous	-
15	388881		Timer, Control 60 Hz,		Appelez-nous	-
16	362681		Motor, Timer		Appelez-nous	-
17	388760		Switch, Water Level		Appelez-nous	-
18	3348550		Bracket, Control		Appelez-nous	-
19	388503		Cap, End (l.h.)		Appelez-nous	-
20	389222		Switch, Water Temperature		Appelez-nous	-
21	3348551		Bracket, Timer		Appelez-nous	-
22	WP90767		Screw, No.8 Mounting   (Replaces: 3348629)			Immediately	$ 7.04
23	389224		Light, Indicator		Appelez-nous	-
24	387700		Ballast		Appelez-nous	-
25	3347031		Pushbutton, Water Level		Appelez-nous	-
26	388943		Switch, Push To Start		Appelez-nous	-
27	689559		Nut, Push-in		Appelez-nous	-
28	697695		Pushbutton, Water Temperature (5)		Appelez-nous	-
29	WP388326		Screw, 8-18 (2)   (Replaces: 64211)				$ 7.30
30	3347106		Panel, Console		Appelez-nous	-
31	388504		Cap, End (r.h.)		Appelez-nous	-
32	3347052		Trim, Console		Appelez-nous	-
32	3348883		Bracket, End Cap		Appelez-nous	-
34	387887		Plug, Latch		Appelez-nous	-
35	388745		Trim, Endcap		Appelez-nous	-
36	388744		Nut, No.10 Thread		Appelez-nous	-
38	388746		Trim, End Cap (r.h.)		Appelez-nous	-
39	WP3351614		Screw, 10-24 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
40	WP356418		Screw (2)   (Replaces: 96435)				$ 7.13
41	WP90767		Screw, 8a X 3/8 (2)   (Replaces: 90767)			Immediately	$ 7.04
42	WP489128		Screw   (Replaces: 303921)				$ 9.79
