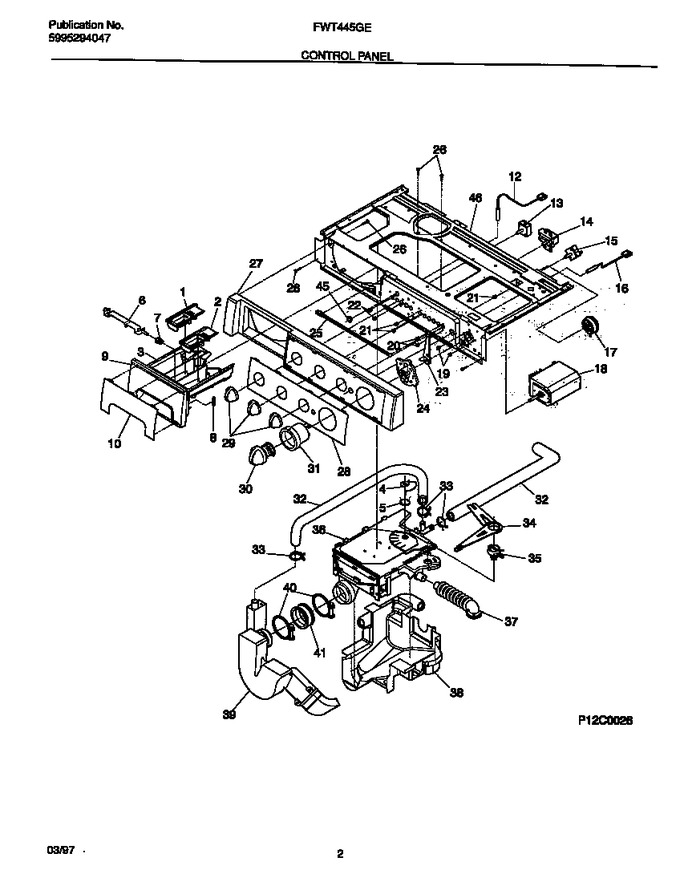

02 - Control Panel


03 - Cabinet, Door & Top


04 - Tub & Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131272100		Cover-bleach				$ 42.50
2	131272000		Cover-softener				$ 71.66
3	131271900		Drawer-dispenser		Appelez-nous	-
4	131271300		Pin		Appelez-nous	-
5	131271200		Spring				$ 24.59
6	131374500		Latch-handle				$ 44.45
7	131427500		Spring				$ 14.07
8	131373800		Magnet				$ 48.62
9	131300600		Handle-white		Appelez-nous	-
10	131300700		Trim-white		Appelez-nous	-
12	131505900		Switch-reed		Appelez-nous	-
13	131374600		Switch-water Temp		Appelez-nous	-
14	131272900		Buzzer		Appelez-nous	-
15	131272800		Switch-extra Rinse				$ 74.86
16	131349000		Light-pilot		Appelez-nous	-
17	131273700		Switch-pressure		Appelez-nous	-
18	131272500		Timer		Appelez-nous	-
19	131303600		Screw-timer, Quadrex Ph, 10-24 X .25		Appelez-nous	-
20	131311700		Screw-sw Rinse, Quad Ph Unc 2a, 8-32 X .15		Appelez-nous	-
21	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
22	3161259		Screw-switch, 6-32 X .19-2a, (2)				$ 6.83
23	131270200		Lever-cam				$ 50.98
24	131270100		Cam-timer				$ 64.93
25	131271400		Rod				$ 50.43
26	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
27	131269901		Panel-control		Appelez-nous	-
28	131600600		Trim-panel		Appelez-nous	-
29	131264500		Knob-rotary				$ 39.48
30	131446200		Knob-timer Assy				$ 182.57
31	131264400		Dial-timer,white		Appelez-nous	-
32	131272400		Hose-siphon/fill				$ 85.84
33	131306215		Clamp				$ 13.47
34	131465200		Arm-pivot		Appelez-nous	-
35	131271500		Disp-eccentric				$ 29.18
36	131270300		Dispenser Assy,includes 1,2 ,3,4,5,35,and 37		Appelez-nous	-
37	131271600		Hose-tub				$ 90.01
38	131351000		Shield-dispenser		Appelez-nous	-
39	131272300		Duct-fill		Appelez-nous	-
40	131333100		Clamp				$ 19.80
41	131272200		Ring-junction		Appelez-nous	-
45	5303321107		Bushing				$ 4.52
46	131267000		Bracket-controls				$ 102.10
*14440	131657600		Harness-main				$ 185.27
