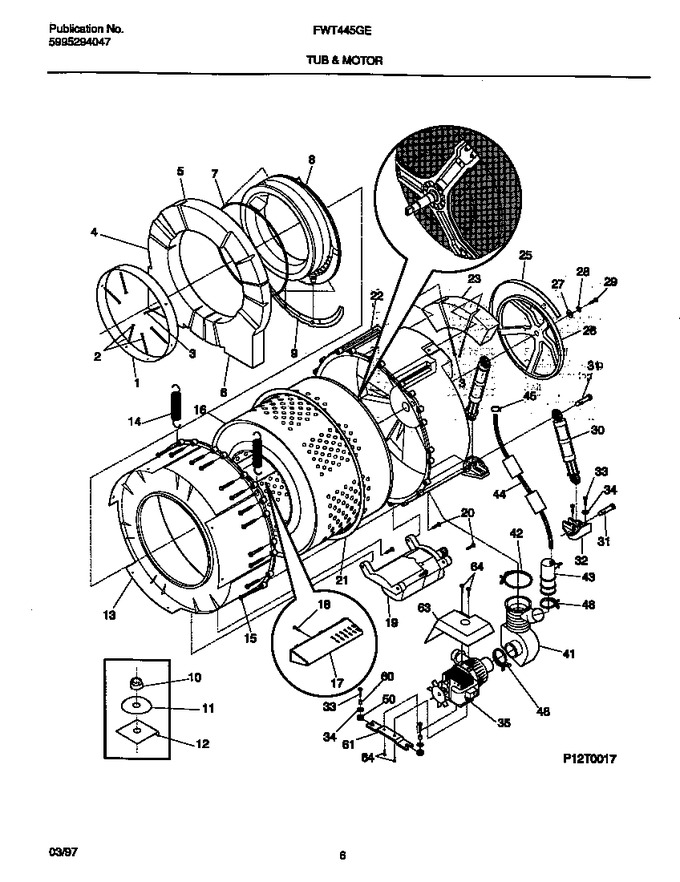

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131277000		Ring-weight		Appelez-nous	-
2	131303401		Bolt, 1/4-20 X 4.50		Appelez-nous	-
3	131303402		Bolt,1/4-20x4.05		Appelez-nous	-
4	131276500		Weight-lwr Left		Appelez-nous	-
5	131276600		Weight-top Front		Appelez-nous	-
6	131276400		Weight-lwr Right		Appelez-nous	-
7	131277300		Spring-boot				$ 48.39
8	5303937187		Boot   (Replaces: 131277100)			Immediately	$ 134.13
9	131277200		Reinforcement		Appelez-nous	-
10	131304700		Nut				$ 8.14
11	131276900		Washer-spring				$ 21.69
12	131276800		Plate-weight		Appelez-nous	-
13	131618600		Shell-front Tub				$ 434.48
14	131277700		Spring-tub		Appelez-nous	-
15	131303900		Screw,hxwhd A ,1/4-10x2.165				$ 15.60
16	131618500		Tub-spin				$ 787.77
17	131274600		Vane			Immediately	$ 67.96
18	131302800		Screw-vane,quad Ph Ab `10-16x.375			Immediately	$ 26.58
19	131276200		Motor-main, 850			Immediately	$ 323.22
20	131303500		Screw-motor,hwhd Ab ,12-14x1.50				$ 12.05
21	134146100		Seal-shell   (Replaces: 131275900)			Immediately	$ 71.58
22	131525500		Shell-rear/bearing   (Replaces: 131462800)			Immediately	$ 634.00
23	131276700		Weight-rear Top		Appelez-nous	-
25	134051000		Belt   (Replaces: 131276300)			Immediately	$ 38.98
26	131632500		Pulley-drum		Appelez-nous	-
27	131304400		Washer .41x1.500x.120				$ 32.52
28	131304500		Washer-lock,3/8				$ 12.53
29	131303700		Screw-pulley,m10x.92				$ 15.90
30	5304485917		Level-shock   (Replaces: 131268200)			Immediately	$ 45.44
31	131268300		Pin-level			Immediately	$ 12.76
32	131268100		Bracket-shock				$ 59.90
33	131303100		Screw-bracket, Hwhd Ab, 10-16 X .625		Appelez-nous	-
34	131304300		Washer .21x.71x.06`.21x.71x.06		Appelez-nous	-
35	131268401		Pump-drain   (Replaces: 131268400)			Immediately	$ 254.47
41	131784700		Trap   (Replaces: 131277400)			Immediately	$ 116.37
42	134737300		Clamp   (Replaces: 131333101)				$ 20.13
43	131277500		Chamber-air				$ 51.41
44	131277600		Tube-pressure		Appelez-nous	-
45	131306202		Clamp				$ 11.63
48	5304536802		Clamp-pump   (Replaces: 131306234)			Immediately	$ 4.01
50	131268600		Grommet-pump		Appelez-nous	-
60	131268700		Spacer-pump		Appelez-nous	-
61	131268500		Bracket-pump		Appelez-nous	-
63	131351500		Shield-pump		Appelez-nous	-
64	5303283072		Screw, Pump/brk/shield				$ 9.12
*14444	131560000		Sleeve-lower Spring,tub				$ 13.40
*14445	131592200		Sleeve-upper Spring,tub				$ 36.01
