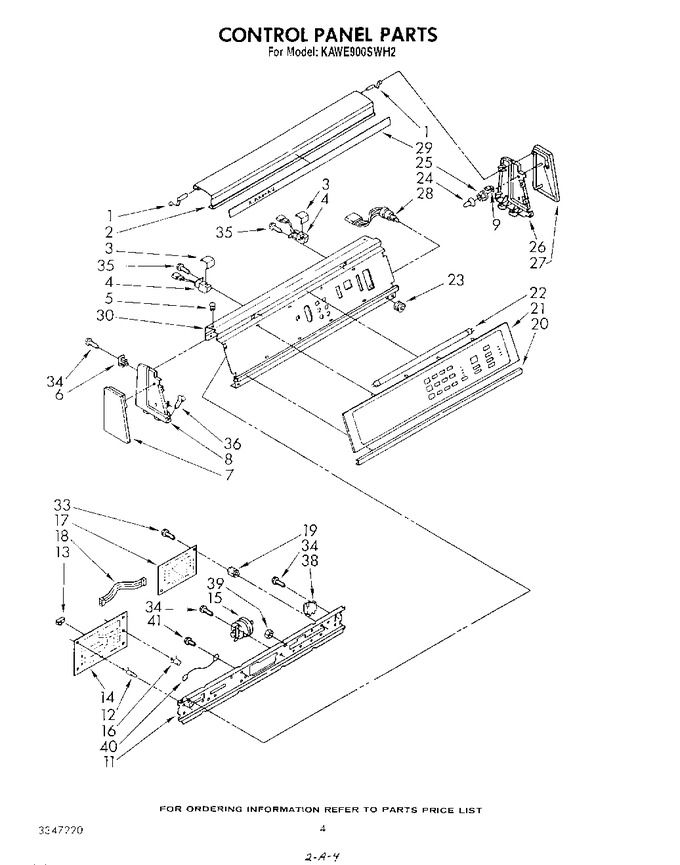

03 - Control Panel


04 - Rear Panel


05 - Agitator, Basket And Tub


06 - Miscellaneous


07 - Brake, Clutch, Gearcase, Motor And Pump


08 - Machine Base


09 - Wiring Harness


10 - Brake And Drive Tube


11 - Gearcase


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3347112		Hinge, Lamp Cover		Appelez-nous	-
2	3348056		Pad, Console (includes Illus. 29)		Appelez-nous	-
3	3348529		Cover, Lamp Socket		Appelez-nous	-
4	389226		Socket, Lamp ((l.h.))		Appelez-nous	-
4	389217		Socket, Lamp ((r.h.))		Appelez-nous	-
5	387887		Plug, Latch		Appelez-nous	-
6	689559		Nut, Push-in (2)		Appelez-nous	-
7	388745		Trim, End Cap (l.h.)		Appelez-nous	-
8	388503		Cap, End (l.h.)		Appelez-nous	-
9	3349059		Bracket, End Cap (2)		Appelez-nous	-
11	3348550		Bracket, Control		Appelez-nous	-
12	313087		Support, Circuit Board		Appelez-nous	-
13	3407005		Connector, Two Terminal		Appelez-nous	-
14	3407003		Microcomputer		Appelez-nous	-
15	3347693		Switch, Water Level		Appelez-nous	-
16	772566		Support, Circuit Board		Appelez-nous	-
17	3407002		Power Supply		Appelez-nous	-
18	3347278		Jumper, Board To Board		Appelez-nous	-
19	388249		Standoff, Relay Board Mounting (4)		Appelez-nous	-
20	3347052		Trim, Console Panel		Appelez-nous	-
21	3407031		Touch Module		Appelez-nous	-
22	387693		Lamp, Flourescent		Appelez-nous	-
23	3347687		Nut, Knurled		Appelez-nous	-
24	3348103		Cap, Insulator		Appelez-nous	-
25	388744		Nut, No.10 Thread		Appelez-nous	-
26	388504		Cap, End (r.h.)		Appelez-nous	-
27	388746		Trim, End Cap (r.h.)		Appelez-nous	-
28	3347115		Switch, Flourescent		Appelez-nous	-
29	3348053		Insert, Console Pad		Appelez-nous	-
30	3349056		Panel, Control		Appelez-nous	-
33	302252		Screw, 6-32 X 1/2 Board And Standoff Mounting (8)		Appelez-nous	-
34	WP90767		Screw, 8a X 3/8   (Replaces: 3348629)			Immediately	$ 7.04
35	WP965173		Screw, 8-18 X 5/16   (Replaces: 271096)			Immediately	$ 9.65
36	WP388326		Screw, 8-18 (2)   (Replaces: 64211)				$ 7.30
38	772572		Ballast		Appelez-nous	-
39	3407038		Nut (8)		Appelez-nous	-
40	388853		Wire, Ground		Appelez-nous	-
41	WP3351614		Screw, 10-24 X 3/8 (2)   (Replaces: 90864)			Immediately	$ 6.26
