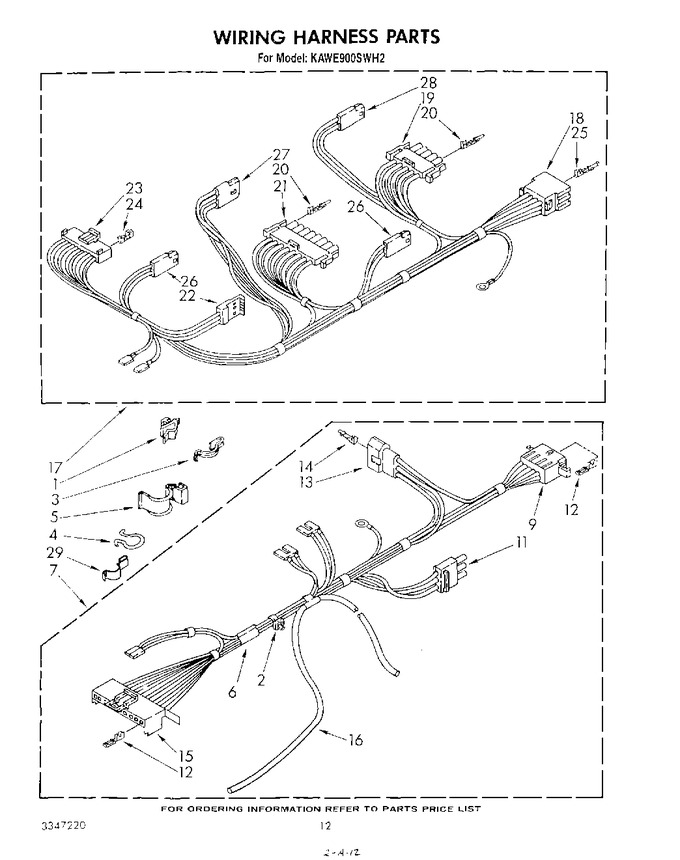

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	62732		Clip, Harness		Appelez-nous	-
2	62749		Clip, Harness				$ 18.77
3	WP98997		Clip, Harness   (Replaces: 98997)				$ 9.98
4	387551		Clip, Harness (3)		Appelez-nous	-
5	WP90016		Clip, Harness   (Replaces: 90016)				$ 10.19
6	63523		Protector, Harness				$ 169.95
7	387928		Wiring Harness & Pressure Switch Hose (base)		Appelez-nous	-
9	96894		Plug, Terminal (15 Way)		Appelez-nous	-
11	WP62889		Receptacle, Terminal (3-way) (lid Switch)   (Replaces: 62889)				$ 6.88
12	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
13	353424		Plug, Terminal (3-way) (power Cord)				$ 18.95
14	94613		Terminal, (male)		Appelez-nous	-
15	WP62505		Block, Disconnect (motor)   (Replaces: 62505)				$ 21.35
16	WP353244		Hose, Pressure Switch   (Replaces: 353406)			Immediately	$ 53.94
17	3347279		Harness, Wiring (console)		Appelez-nous	-
18	96895		Cap, Terminal (15 Way)		Appelez-nous	-
19	388500		Connector, 5 Terminal (uses Terminal 388499)		Appelez-nous	-
20	388499		Terminal		Appelez-nous	-
21	388501		Connector, 8 Terminal (uses Terminal 388499)		Appelez-nous	-
22	388497		Connector, 3 Terminal		Appelez-nous	-
23	772579		Cap, 10 Pin (uses Terminal 772581)		Appelez-nous	-
24	772581		Terminal		Appelez-nous	-
25	94613		Terminal		Appelez-nous	-
26	717251		Plug, Terminal (2 Way)		Appelez-nous	-
27	717315		Receptacle, Terminal (4 Way)		Appelez-nous	-
28	696669		Receptacle, Terminal 2 Way		Appelez-nous	-
29	8528351		Clip, Harness   (Replaces: 3347812)		Appelez-nous	-
