01 - Cover

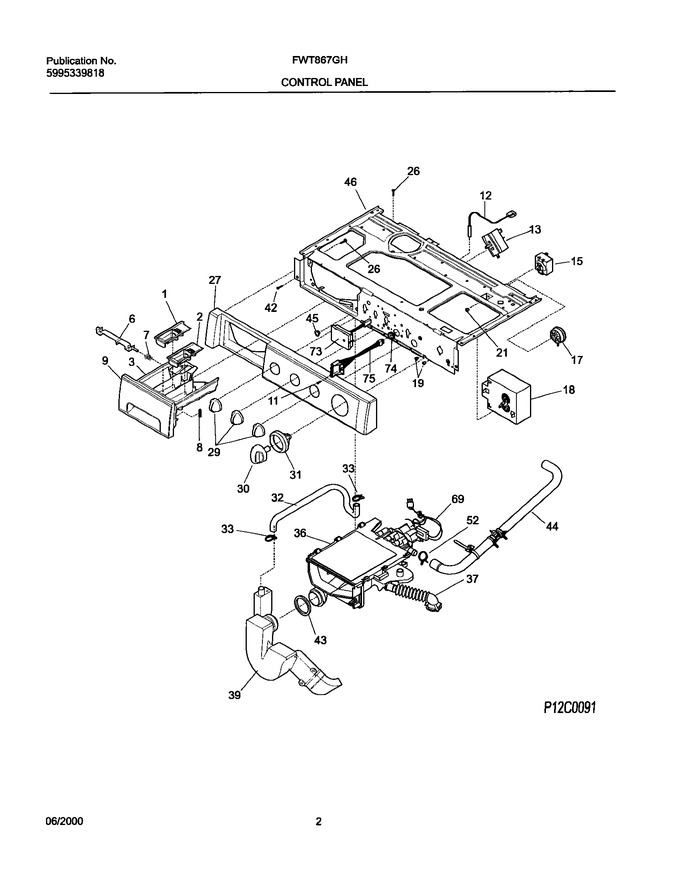

03 - Control Panel
05 - Cabinet Door And Top
07 - Tub And Motor
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131272100 | Cover-bleach |
|
$ 42.50 | |||||
| 2 | 131272000 | Cover-softener |
|
$ 71.66 | |||||
| 3 | 131444837 | Asmy-disp Drawer Handle |
|
- | |||||
| 6 | 131374500 | Latch-handle |
|
$ 44.45 | |||||
| 7 | 131427500 | Spring |
|
$ 14.07 | |||||
| 8 | 131373800 | Magnet |
|
$ 48.62 | |||||
| 9 | 131691237 | Asmy-disp Drwr/handle/trim |
|
$ 81.06 | |||||
| 11 | 131205100 | Screw |
|
Immediately | $ 14.18 | ||||
| 13 | 131891700 | Switch-temp 7pos-atc Frt Load |
|
- | |||||
| 15 | 131243200 | Switch-extra Rinse/speed |
|
- | |||||
| 18 | 131854300 | Timer-washer Mallory |
|
- | |||||
| 19 | 131243800 | Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv |
|
$ 10.46 | |||||
| 21 | 131243700 | Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive |
|
$ 3.36 | |||||
| 26 | 131823400 | Scr 8-18x2.000 |
|
$ 1.42 | |||||
| 27 | 131887263 | Asmy-cons Frame/trim Fwt867ghs |
|
- | |||||
| 29 | 131761704 | Knob-rotary |
|
$ 43.38 | |||||
| 30 | 134191800 | Knob-timer (Replaces: 131853500) |
|
Immediately | $ 112.91 | ||||
| 31 | 131853900 | Pointer-timer Wht/drk Gray Ind |
|
Immediately | $ 121.07 | ||||
| 32 | 131786100 | Hose-dispenser |
|
$ 66.62 | |||||
| 33 | 131306215 | Clamp |
|
$ 13.47 | |||||
| 36 | 131803700 | Asmy-detergent Dispenser |
|
- | |||||
| 37 | 131271600 | Hose-tub |
|
$ 90.01 | |||||
| 39 | 131863300 | Siphon |
|
$ 30.96 | |||||
| 42 | 131168200 | Screw, 8-18 X 0.31 |
|
Immediately | $ 14.18 | ||||
| 43 | 131749200 | Gasket-seal |
|
$ 20.33 | |||||
| 44 | 131899800 | Asmy-thermistor/hose/clamp |
|
- | |||||
| 45 | 5303321107 | Bushing |
|
$ 4.52 | |||||
| 46 | 131810012 | Panel-cont Mtg-wing Bend |
|
- | |||||
| 52 | 131306242 | Clamp |
|
$ 4.94 | |||||
| 69 | 131908000 | Harness-disp Valve-haw W/atc |
|
$ 98.49 | |||||
| 73 | 131963800 | Beeper Cont Hi W/pig Tail |
|
$ 151.83 | |||||
| 74 | 131933200 | Bushing-snap |
|
- | |||||
| 75 | 131949000 | Asmy-lamp/brkt |
|
- | |||||
| F12 | 131505900 | Switch-reed |
|
- | |||||
| F17 | 131273700 | Switch-pressure |
|
- | |||||
| NI | 131307900 | Clamp-siphon To Bellows |
|
$ 11.34 | |||||
| NI | 131931200 | Vibration Dampener |
|
- | |||||
| NI | 131891000 | Automatic Temp Cont Board |
|
- | |||||
| NI | 131894600 | Housing-atc Board |
|
- | |||||
| NI | 131906300 | Harness-front Cons-haw |
|
- |
