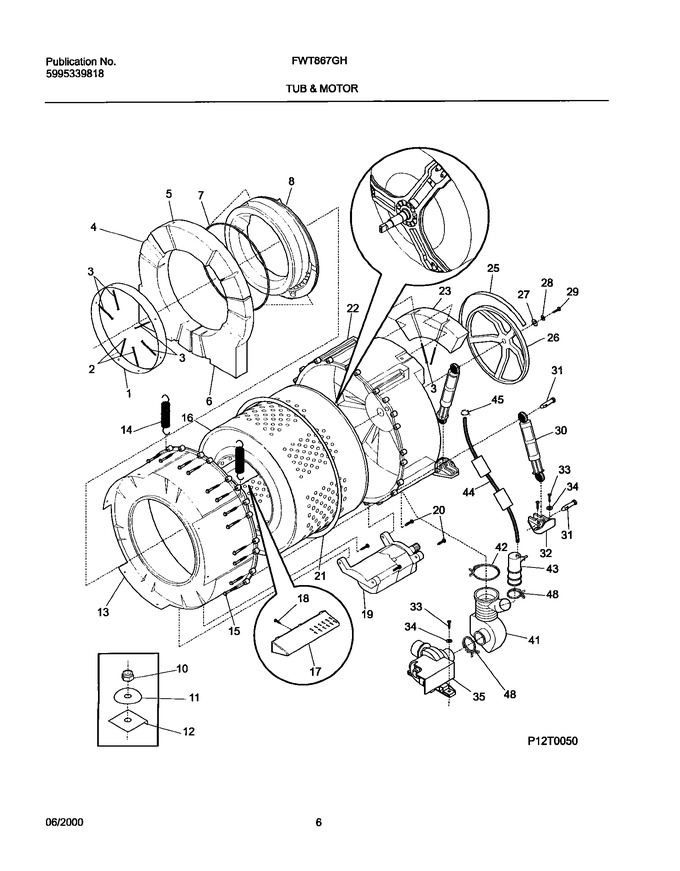

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131793400 | Ring-weight |
|
$ 35.07 | |||||
| 2 | 131793301 | Bolt-carriage 1/4-20x4.5 |
|
$ 9.14 | |||||
| 3 | 131793300 | Bolt-carriage 1/4-20x4.15 |
|
- | |||||
| 4 | 131276500 | Weight-lwr Left |
|
- | |||||
| 5 | 131276600 | Weight-top Front |
|
- | |||||
| 6 | 131851900 | Counterweight-lower Right |
|
- | |||||
| 7 | 131277300 | Spring-boot |
|
$ 48.39 | |||||
| 8 | 5303937187 | Bellows (Replaces: 131277100) |
|
Immediately | $ 134.13 | ||||
| 10 | 131304700 | Nut |
|
$ 8.14 | |||||
| 11 | 131276900 | Washer-spring |
|
$ 21.69 | |||||
| 12 | 131793500 | Plate-weight |
|
$ 11.76 | |||||
| 13 | 131618600 | Shell-front Tub |
|
$ 434.48 | |||||
| 14 | 134144700 | Spring/sleeve (Replaces: 131663600) |
|
Immediately | $ 60.25 | ||||
| 15 | 131303900 | Screw,hxwhd A ,1/4-10x2.165 |
|
$ 15.60 | |||||
| 16 | 131618500 | Tub-spin |
|
$ 787.77 | |||||
| 17 | 131274600 | Vane |
|
Immediately | $ 67.96 | ||||
| 18 | 131302800 | Screw-vane,quad Ph Ab `10-16x.375 |
|
Immediately | $ 26.58 | ||||
| 19 | 131770600 | Motor-sole |
|
- | |||||
| 20 | 131303500 | Screw-motor,hwhd Ab ,12-14x1.50 |
|
$ 12.05 | |||||
| 21 | 134146100 | Seal-shell (Replaces: 131275900) |
|
Immediately | $ 71.58 | ||||
| 22 | 131525500 | Shell-rear/bearing (Replaces: 131462800) |
|
Immediately | $ 634.00 | ||||
| 23 | 131709300 | Weight-upper Back |
|
- | |||||
| 26 | 131883400 | Pulley-drum-reinforced |
|
$ 205.54 | |||||
| 27 | 131304400 | Washer .41x1.500x.120 |
|
$ 32.52 | |||||
| 28 | 131304500 | Washer-lock,3/8 |
|
$ 12.53 | |||||
| 29 | 131303700 | Screw-pulley,m10x.92 |
|
$ 15.90 | |||||
| 30 | 5304485917 | Level-shock (Replaces: 131268200) |
|
Immediately | $ 45.44 | ||||
| 31 | 131268300 | Pin-level |
|
Immediately | $ 12.76 | ||||
| 32 | 131268100 | Bracket-shock |
|
$ 59.90 | |||||
| 33 | 131303100 | Screw-bracket, Hwhd Ab, 10-16 X .625 |
|
- | |||||
| 34 | 131304300 | Washer .21 X .71 X .06 |
|
- | |||||
| 35 | 137108000 | Pump-drain H Axis Wshr 40mm (Replaces: 131889800) |
|
Immediately | $ 214.71 | ||||
| 41 | 131784700 | Hose-coin Trap-tub To Pump |
|
Immediately | $ 116.37 | ||||
| 42 | 134737300 | Clamp (Replaces: 131333101) |
|
$ 20.13 | |||||
| 43 | 131277500 | Chamber-air |
|
$ 51.41 | |||||
| 44 | 131277600 | Tube-pressure |
|
- | |||||
| 45 | 131306202 | Clamp |
|
$ 11.63 | |||||
| 48 | 5304536802 | Clamp-pump (Replaces: 131306234) |
|
Immediately | $ 4.01 | ||||
| F25 | 134051000 | Belt (Replaces: 131276300) |
|
Immediately | $ 38.98 | ||||
| NI | 131560000 | Sleeve-lower Spring,tub |
|
$ 13.40 | |||||
| NI | 131592200 | Sleeve-upper Spring,tub |
|
$ 36.01 |
