SELECT A DIAGRAM

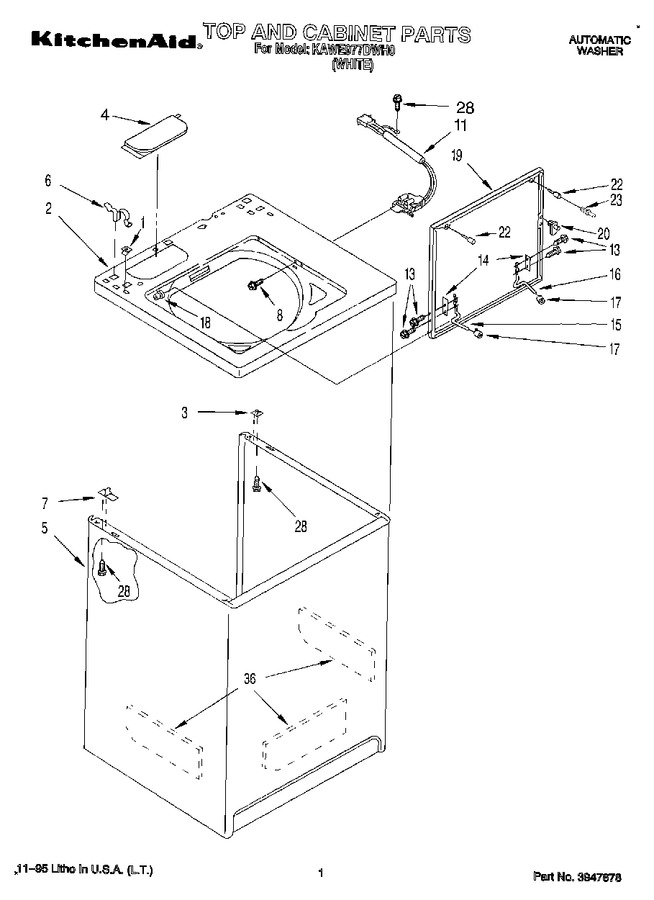

01 - Top And Cabinet


02 - Rear Panel


03 - Agitator, Basket And Tub


04 - Machine Base


05 - Control Panel


06 - Brake, Clutch, Gearcase, Motor And Pump


07 - Wiring Harness


08 - Gearcase


09 - Brake And Drive Tube


10 - Bleach, Detergent And Rinse Dispens


11 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 6.65
2	3361954		Top		Appelez-nous	-
3	WP62750		Spacer, Cabinet To Top (3)   (Replaces: 62750)			Immediately	$ 6.92
4	64172		Cover, Hose (disconnect)				$ 428.53
5	63424		Cabinet   (Replaces: 388391)				$ 333.02
6	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 7.02
7	388252		Spacer-cabinet (top)		Appelez-nous	-
8	WP3356311		Screw & Washer, Lid Switch (2)   (Replaces: 3356311)				$ 6.98
11	285671		Switch, Lid   (Replaces: 3352629)			Immediately	$ 64.13
13	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: 3351355)			Immediately	$ 6.47
14	WP21097		Pad, Lid Hinge (2)   (Replaces: 21097)				$ 7.02
15	WP54584		Hinge, Lid (l.h.)   (Replaces: 54584)				$ 30.09
16	WP54583		Hinge, Lid (r.h.)   (Replaces: 54583)				$ 26.60
17	19119		Bumper, Lid Hinge				$ 5.75
18	WP21258		Bearing, Lid Hinge (2)   (Replaces: 21258)			Immediately	$ 6.87
19	3362326		Lid		Appelez-nous	-
20	WP358684		Strike, Lid Switch   (Replaces: 358684)			Immediately	$ 6.90
22	3360787		Bumper, Lid (1)		Appelez-nous	-
23	WP356907		Rivet, Plastic   (Replaces: 356907)				$ 6.66
28	WP681414		Screw, 10-16 X 1/2 (5)   (Replaces: 384435)			Immediately	$ 7.07
36	3349654		Sound-damper (cabinet)		Appelez-nous	-
