SELECT A DIAGRAM

01 - Top And Cabinet

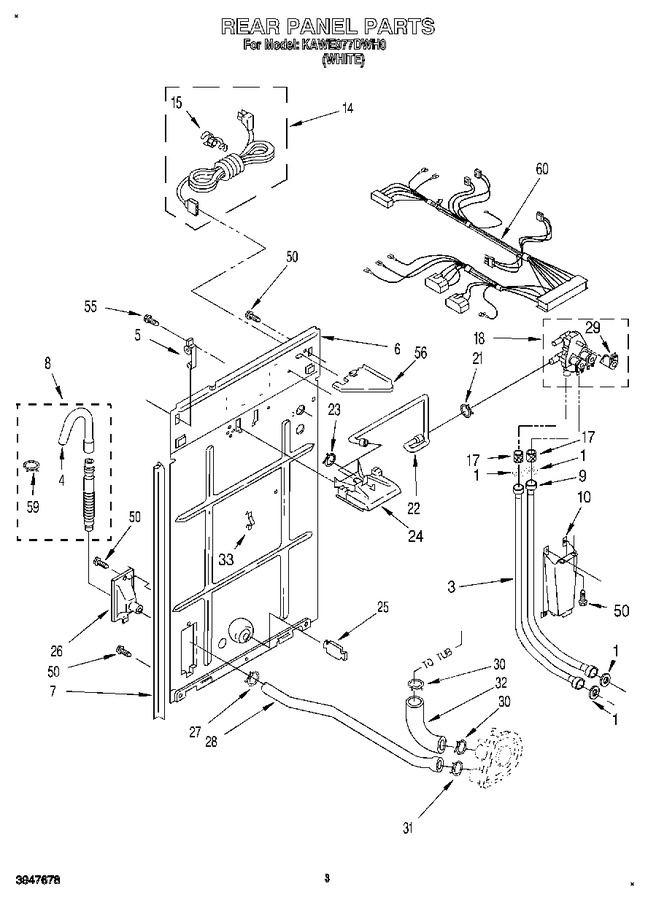

02 - Rear Panel


03 - Agitator, Basket And Tub


04 - Machine Base


05 - Control Panel


06 - Brake, Clutch, Gearcase, Motor And Pump


07 - Wiring Harness


08 - Gearcase


09 - Brake And Drive Tube


10 - Bleach, Detergent And Rinse Dispens


11 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 6.93
3	WP89503		Hose, Water Inlet (1)   (Replaces: 661582)			Immediately	$ 21.68
4	WP3357027		Nozzle, Drain Drain   (Replaces: 3357027)				$ 83.88
5	387402		Hinge, Console (2)				$ 5.84
6	3354585		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 23.63
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 54.81
8	285664		Hose, Drain (4`- 8``)   (Replaces: 661575)			Immediately	$ 33.20
8	285666		Hose, Drain (9`- 9``) (not Included)   (Replaces: 661577)			Immediately	$ 56.11
9	WP76314		Hose-inlet-hot   (Replaces: 3946393)				$ 38.79
10	64219		Bracket-inlet Hose		Appelez-nous	-
14	W10820044		Cord, Power   (Replaces: 3948063)				$ 128.46
15	W11733005		Strain Relief, Power Cord   (Replaces: 63848)				$ 11.64
17	WP96160		Screen, Filter (2)   (Replaces: 96160)				$ 10.54
18	3362048		Valve, Water Mixing		Appelez-nous	-
21	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 7.56
21	WP596669		(alt.)   (Replaces: 353367)			Immediately	$ 7.56
21	WP596669		(alt.)   (Replaces: 272846)			Immediately	$ 7.56
22	3362057		Hose, Vacuum Break		Appelez-nous	-
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.56
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 45.41
25	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 17.01
26	WPW10358149		Connector, Drain Hose   (Replaces: 3355497)			Immediately	$ 43.34
27	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
28	3359816		Hose, Pump To Drain Connector		Appelez-nous	-
29	389252		Coil, Dispenser & Mixing Valve		Appelez-nous	-
30	WP371502		Clamp, Hose   (Replaces: 371502)				$ 10.38
31	WP371502		Clamp, Hose   (Replaces: 371507)				$ 10.38
32	285871		Hose, Pump To Tub   (Replaces: 62731)			Immediately	$ 24.01
33	64162		Retainer Cross-over		Appelez-nous	-
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.04
55	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.08
56	3348424		Sheild, Suds		Appelez-nous	-
59	WP3357331		Clamp, Drain Hose   (Replaces: 3357331)				$ 6.80
60	3361731		Harness, Wiring (for Detail See Wiring Harness Parts Page) Also See Clips.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
