SELECT A DIAGRAM

01 - Cover


02 - P12v0019 Wshr Cab,top


03 - P12t0036 Wshr Mtr,hose

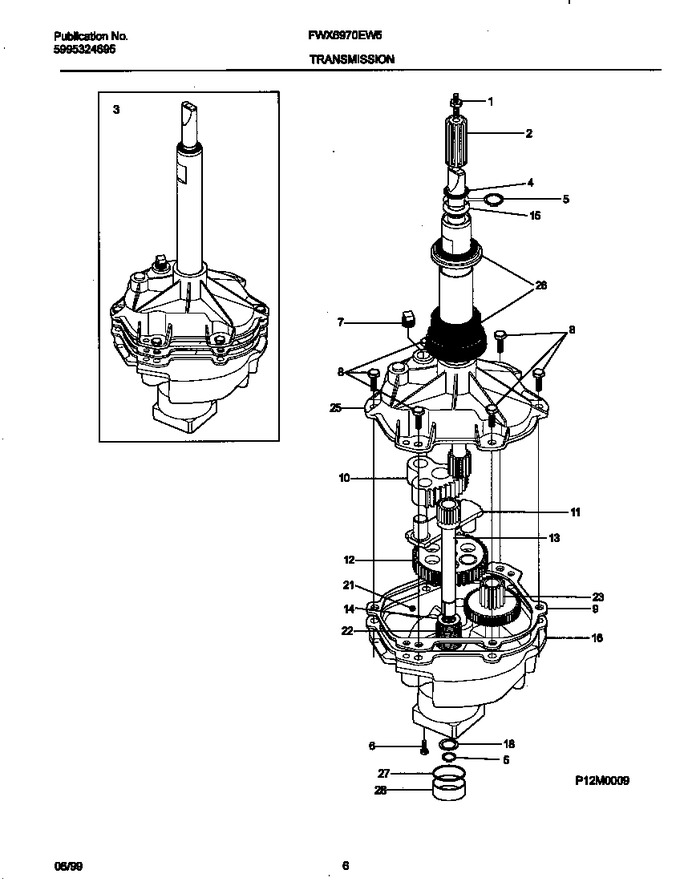

04 - P12m0009 Transmission


05 - P12c0009 Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131206800		Stud-agitator Cap				$ 48.20
2	5303306139		Hub-drive, Agitator		Appelez-nous	-
3	134735700		Transmission-complete   (Replaces: 5308057580)				$ 820.03
4	5303161307		Seal-upper, Lip			Immediately	$ 21.27
5	5303161223		Ring-retaining				$ 10.24
6	131346600		Screw		Appelez-nous	-
7	5303161224		Plug-pipe		Appelez-nous	-
8	5308002804		Screw-transm.		Appelez-nous	-
9	5308015778		Gasket				$ 33.18
10	5308011268		Gear-sector		Appelez-nous	-
11	131632701		Rod-connecting		Appelez-nous	-
12	5308015496		Gear-crank		Appelez-nous	-
13	5308014905		Shaft-lower		Appelez-nous	-
14	5303161226		Washer-thrust		Appelez-nous	-
15	5303161232		Washer		Appelez-nous	-
16	131557800		Housing-lower		Appelez-nous	-
18	5308002475		Washer-spacer		Appelez-nous	-
21	3005242		Oil-transmission (1 Qt)		Appelez-nous	-
22	131417600		Spring-small L.g.s.		Appelez-nous	-
23	5303161175		Gear-idler		Appelez-nous	-
25	131586600		Housing-upper W/shaft		Appelez-nous	-
26	5303279394		Seal-tub				$ 85.72
27	131784300		Washer-trans-brg Block-koyo		Appelez-nous	-
28	131784400		Spacer-trans Brg Block-koyo				$ 48.58

    View Diagram in Separate Window       Print Part List
