SELECT A DIAGRAM

01 - Cover


02 - P12v0019 Wshr Cab,top


03 - P12t0036 Wshr Mtr,hose


04 - P12m0009 Transmission


05 - P12c0009 Control Panel

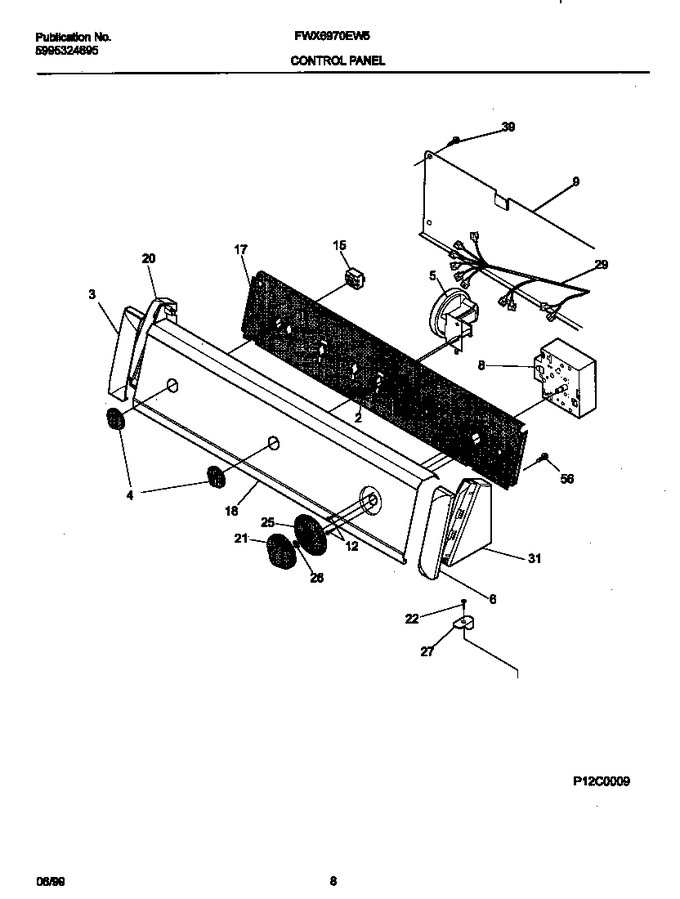

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
3	131122610		Cover-end Cap,black ,lh		Appelez-nous	-
4	131858004		Knob-rotary,blk/blue   (Replaces: 131141100)			Immediately	$ 55.29
5	131047500		Switch-pressure				$ 186.53
6	131122600		Cover-end Cap,black ,rh		Appelez-nous	-
8	131436700		Timer-washer				$ 782.37
9	131141701		Backsheet-console		Appelez-nous	-
12	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
15	131047000		Switch-temperature		Appelez-nous	-
17	131728900		Bracket-controls		Appelez-nous	-
18	131611200		Panel-control		Appelez-nous	-
20	131122710		End Cap,black ,lh				$ 94.19
21	131140600		Knob-timer,black				$ 40.61
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	131140700		Dial, Black		Appelez-nous	-
26	5308015493		Spacer-timer Shaft				$ 14.36
27	131197000		Clip-control Panel				$ 13.62
29	131645000		Harness-main		Appelez-nous	-
31	131122700		End Cap,black ,rh				$ 104.90
39	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv				$ 10.46
*53643	131507700		Spacer Pad		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
