SELECT A DIAGRAM

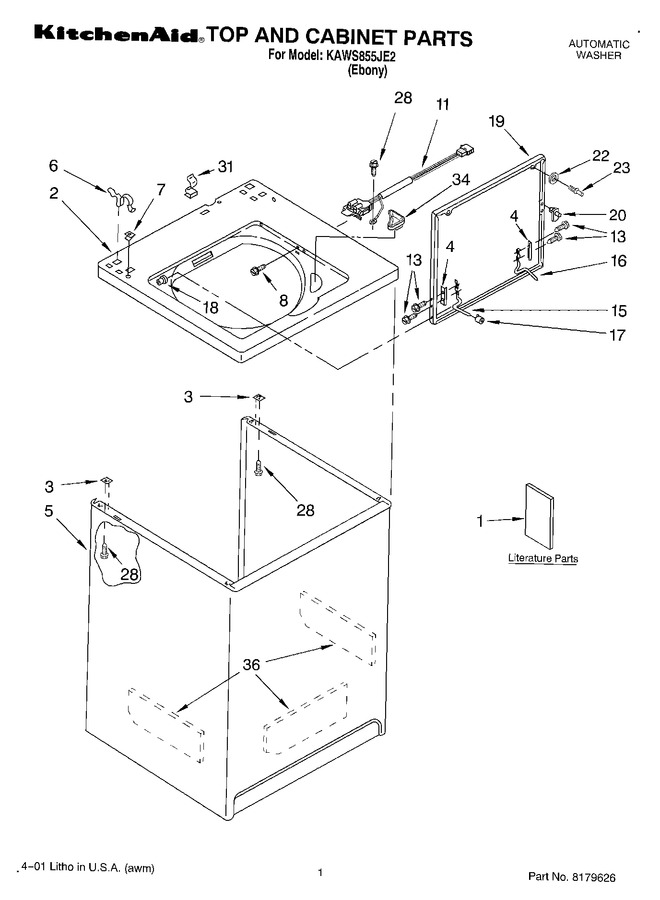

01 - Top And Cabinet, Literature


02 - Rear Panel


03 - Agitator, Basket And Tub


04 - Brake, Clutch, Gearcase, Motor And Pump


05 - Machine Base


06 - Control Panel


07 - Miscellaneous, Optional


08 - Gearcase


09 - Brake And Drive Tube


10 - Wiring Harness


11 - Water System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT3951188		Installation Instructions		Appelez-nous	-
1	LIT3954748		Literature Parts (use & Care Guide) (wiring Diagram)		Appelez-nous	-
1	LIT3954862		Literature Parts (use & Care Guide) (energy Guide)		Appelez-nous	-
1	LIT3951069		Literature Parts (use & Care Guide) (french)		Appelez-nous	-
1	LIT3950452		Literature Parts (use & Care Guide) (english)		Appelez-nous	-
2	3954789		Top		Appelez-nous	-
3	WP62750		Spacer, Cabinet To Top (4)   (Replaces: 62750)			Immediately	$ 6.92
4	WP21097		Pad, Hinge   (Replaces: 21097)				$ 7.02
5	3954788		Cabinet		Appelez-nous	-
6	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 7.02
7	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 6.65
8	WP3356311		Screw & Washer, Lid Switch (2)   (Replaces: 3356311)				$ 6.98
11	3949247V		Switch, Lid   (Replaces: 3949237)			Immediately	$ 45.78
13	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: 3351355)			Immediately	$ 6.47
15	WP54584		Hinge, Lid (l.h.)   (Replaces: 54584)				$ 30.09
16	WP91770		Hinge, Lid (r.h.)   (Replaces: 91770)				$ 24.71
17	19119		Bumper, Lid Hinge				$ 5.75
18	WP21258		Bearing, Lid Hinge (2)   (Replaces: 21258)			Immediately	$ 6.87
19	3362334		Lid		Appelez-nous	-
20	WP358684		Strike, Lid Switch   (Replaces: 358684)			Immediately	$ 6.90
22	3360787		Bumper, Lid		Appelez-nous	-
23	WP356907		Rivet, Plastic   (Replaces: 356907)				$ 6.66
28	WP3390631		Screw, 10-16 X 3/8 (5)   (Replaces: 3390631)				$ 7.04
31	WP90016		Clip, Harness   (Replaces: 90016)				$ 10.19
34	WP3362952		Dispenser, Bleach   (Replaces: 3362952)			Immediately	$ 10.88
36	3349654		Sound-damper (cabinet)		Appelez-nous	-
