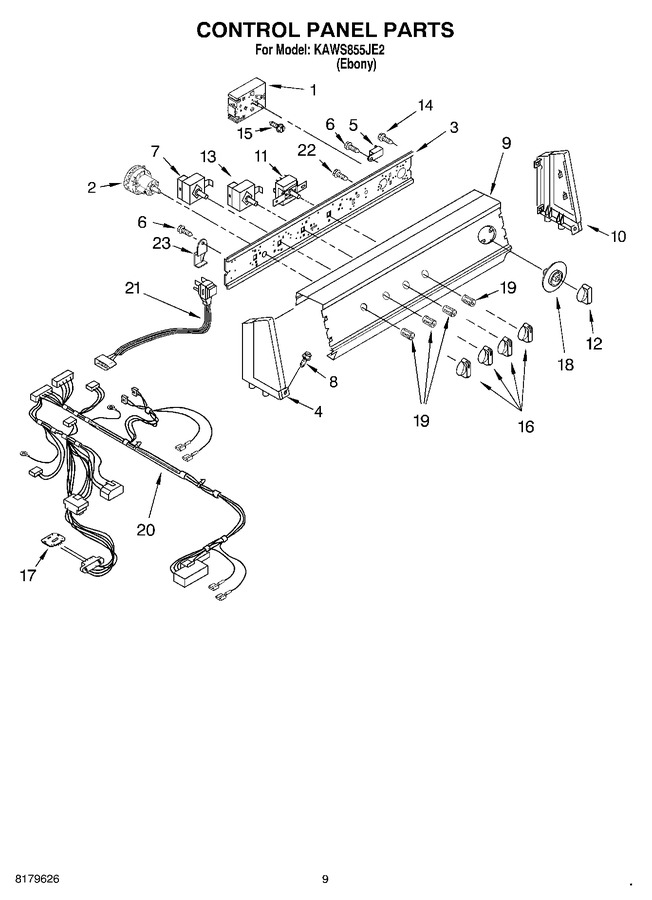

05 - Machine Base


06 - Control Panel


07 - Miscellaneous, Optional


08 - Gearcase


09 - Brake And Drive Tube


10 - Wiring Harness


11 - Water System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3952888		Timer, Control 60hz. (motor Not Serviced)				$ 196.35
2	W10339326		Switch, Water Level   (Replaces: 3950420)			Immediately	$ 79.17
3	WP3948608		Bracket, Control   (Replaces: 3948608)				$ 104.57
4	3954772		Cap, End (l.h.)		Appelez-nous	-
5	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 114.90
6	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
7	3950354		Switch, Water Temperature		Appelez-nous	-
8	WP388326		Screw   (Replaces: 388326)				$ 7.30
9	3952543		Panel, Console		Appelez-nous	-
10	3954771		Cap, End (r.h.)		Appelez-nous	-
11	3952578		Switch, Rotary				$ 93.94
12	3361054		Knob, Timer		Appelez-nous	-
13	W10168264		Switch, Rotary   (Replaces: 3950356)				$ 113.71
14	WP3351614		Screw, 10-24 X 1/2   (Replaces: 90864)			Immediately	$ 6.26
15	WP3400064		Screw, Timer   (Replaces: 3400064)				$ 6.26
16	3949702		Knob, Control (includes No.19)		Appelez-nous	-
17	3407125		Control, Etc		Appelez-nous	-
18	3361176		Dial, Timer		Appelez-nous	-
19	WP688805		Clip, Knob   (Replaces: 688805)			Immediately	$ 7.03
20	3952894		Harness, Wire		Appelez-nous	-
21	W10820044		Cord, Power   (Replaces: 3948063)				$ 128.46
22	3400073		Screw, Ground		Appelez-nous	-
23	8283343		Retainer, Harness		Appelez-nous	-
