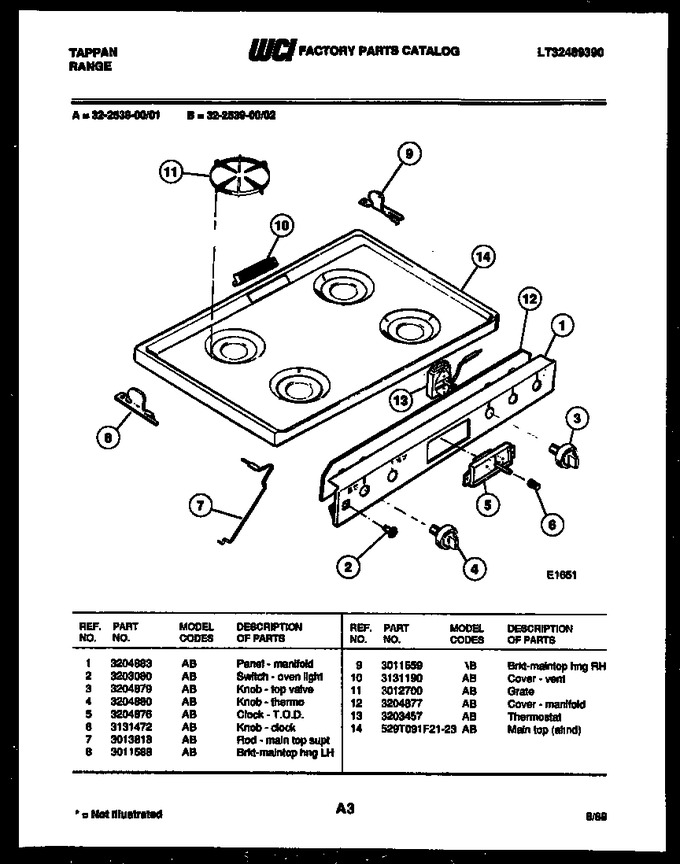

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3204883 | Panel - Manifold |
|
- | |||||
| 2 | 3203080 | Switch - Oven Light |
|
- | |||||
| 3 | 3204879 | Knob - Top Valve |
|
- | |||||
| 4 | 3204880 | Knob - Thermo |
|
- | |||||
| 5 | 3204876 | Clock - T.o.d. |
|
- | |||||
| 6 | 3131472 | Knob-clock |
|
- | |||||
| 7 | 3013818 | Rod - Maintop Supt. |
|
- | |||||
| 8 | 3011588 | Brkt-maintop Hng Lh |
|
- | |||||
| 9 | 3011559 | Brkt-main Top Hng Rh |
|
- | |||||
| 10 | 3131190 | Cover-vent |
|
- | |||||
| 11 | 3012700 | Grate |
|
- | |||||
| 12 | 3204877 | Cover - Manifold |
|
- | |||||
| 13 | 3203457 | Thermostat |
|
- | |||||
| 14 | 529T091F21-23 | Main Top (almd) |
|
- |
