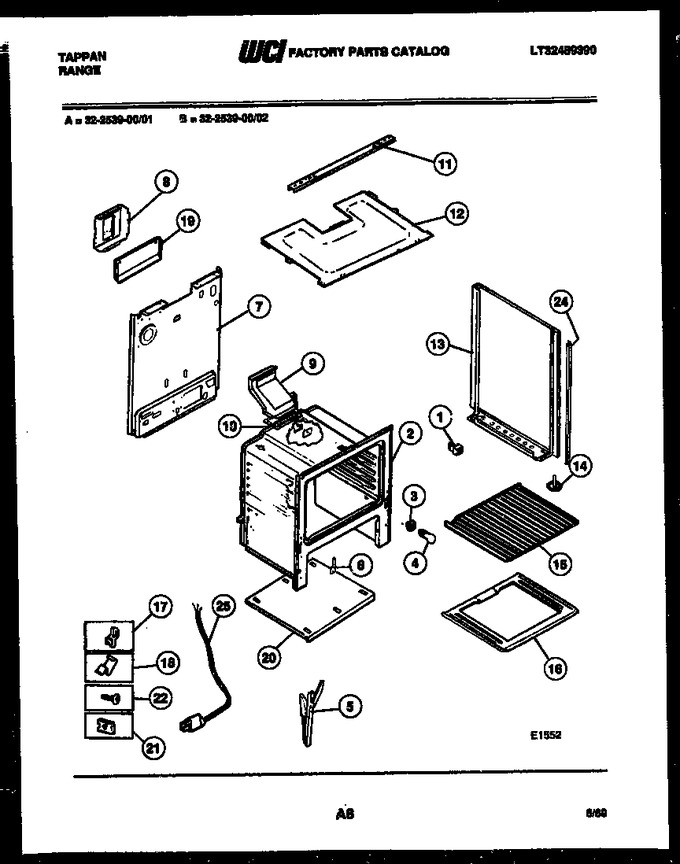

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer, B/s (8)				$ 3.62
3	3014073		Socket-oven Light		Appelez-nous	-
4	3013071		Light Bulb		Appelez-nous	-
5	3131569		Channel - Door Hng		Appelez-nous	-
6	3131570		Cover-hng Cutout				$ 7.35
7	3203082		Back-main		Appelez-nous	-
8	3131660		Rear Wall		Appelez-nous	-
9	3131909		Flue		Appelez-nous	-
10	3131355		Gasket, Flue		Appelez-nous	-
11	3203441		Channel - Brnr Supt		Appelez-nous	-
12	3204962		Burner Box		Appelez-nous	-
13	3200790		Pnl-b/s (almd Rh)		Appelez-nous	-
14	3203397		Screw-leveling (4)		Appelez-nous	-
15	3131973		Rack-oven		Appelez-nous	-
16	3011519		Bottom-oven		Appelez-nous	-
17	3011805		Clip - Thermo Bulb		Appelez-nous	-
18	3012332		Fstnr. Wire		Appelez-nous	-
19	3131191		Cover, Flue		Appelez-nous	-
20	3131180		Base - Broiler		Appelez-nous	-
21	3012323		Fstnr - Hng		Appelez-nous	-
22	316282700		Screw-oven Bttm.   (Replaces: 3131732)				$ 9.93
24	3051326		Trim-vert B/s (2)		Appelez-nous	-
25	5304534377		Cord, Power   (Replaces: 3202006)				$ 26.85
13A	3200793		Pnl-b/s (almd Lh)		Appelez-nous	-
16A	3017142		Insulation (wrapper) (non-illustrated)				$ 193.50
16B	3203541		Insulation, Back (non-illustrated)		Appelez-nous	-
17A	3012327		Fstnr-power Cord (non-illustrated)		Appelez-nous	-
19A	3014226		Support - Oven Bttm (non-illustrated)		Appelez-nous	-
21A	3015372		Cover-front Main (non-illustrated)		Appelez-nous	-
22A	3131244		Cover-power Cord, (non-illustrated)		Appelez-nous	-
22B	3018607		Cover-plate (non-illustrated)				$ 10.50
22C	3934056		Anti, Tip Bracket (non-illustrated)		Appelez-nous	-
22D	3131192		Cover, Rear Wall (non-illustrated)		Appelez-nous	-
22E	3051511		Housing - Oven Light (non-illustrated)				$ 60.22
6A	3202799		Shield-flue, (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
