View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Panel
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Drawer Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:

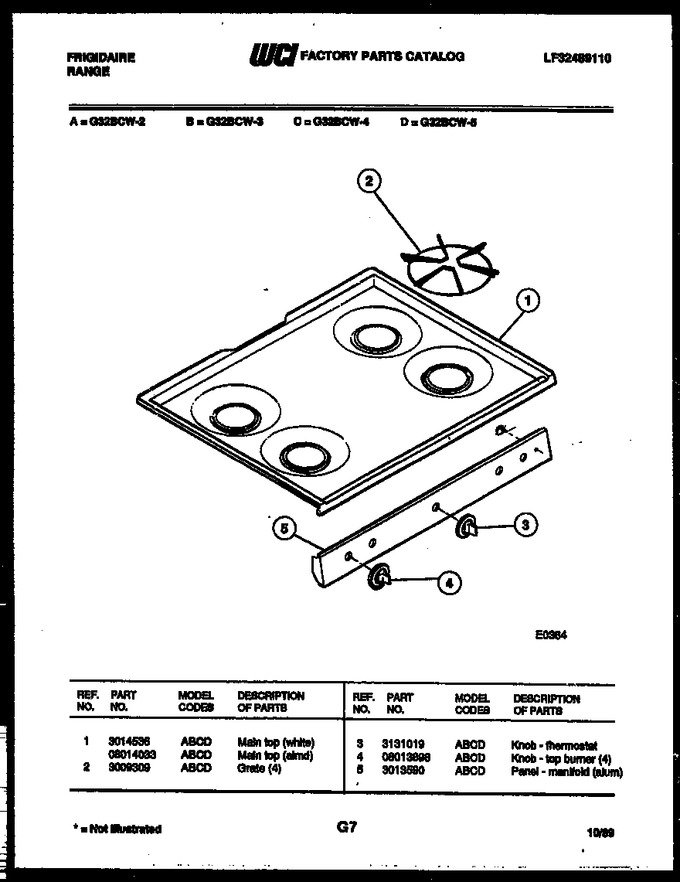

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08014033 | Main Top (almd) |
|
- | |||||
| 2 | 3009309 | Grate (4) |
|
- | |||||
| 3 | 3131019 | Knob - Thermostat |
|
- | |||||
| 4 | 08013898 | Knob - Top Burner (4) |
|
- | |||||
| 5 | 3013590 | Panel - Manifold (alum) |
|
- |
