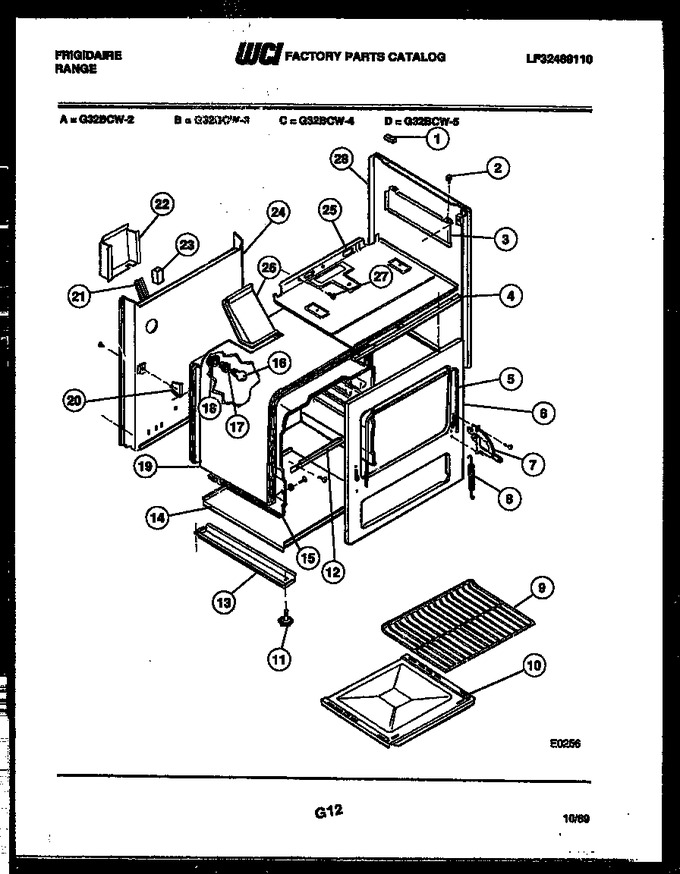

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08068052		Grommet Mn Top Rear		Appelez-nous	-
2	3051063		Grommet Mn Top Frnt.		Appelez-nous	-
3	3131053		Shield-heat Left Side		Appelez-nous	-
4	3131811		Supt-control Panel		Appelez-nous	-
5	08008022		Seal-oven Door		Appelez-nous	-
6	3205578		Frame - Front		Appelez-nous	-
7	3204670		Hinge - Oven Dr Rt		Appelez-nous	-
8	3009435		Spring - Oven Door		Appelez-nous	-
9	3015714		Rack - Oven (2)		Appelez-nous	-
10	3018282		Pnl - Oven Bttm (bz)		Appelez-nous	-
11	3051080		Leg Leveling (4)		Appelez-nous	-
12	3131038		Support - Oven Bttm		Appelez-nous	-
13	08068047		Rail - Base		Appelez-nous	-
14	3011645		Bottom - Main		Appelez-nous	-
15	3018284		Oven Liner Rt (bz)		Appelez-nous	-
16	3013071		Bulb - Oven Light		Appelez-nous	-
17	3009410		Receptacle-oven Light		Appelez-nous	-
18	3051511		Cup, Oven Light				$ 60.22
19	3017172		Insulation - Back		Appelez-nous	-
19	3017171		Insulation - Wrap		Appelez-nous	-
20	3051096		Support,oven Rear		Appelez-nous	-
21	3131046		Channel - Wire		Appelez-nous	-
22	08013953		Cover - Wire		Appelez-nous	-
23	3015197		Spark - Module		Appelez-nous	-
24	3013340		Main Back		Appelez-nous	-
25	3017174		Bttm Burner Box (bz)		Appelez-nous	-
26	3017173		Flue Box - Black		Appelez-nous	-
27	08008051		Bushing - Nylon Snap		Appelez-nous	-
28	08014019		Body Side Panel (almond)		Appelez-nous	-
*12873	08067722		Clip - B/s Corner		Appelez-nous	-
*12873	3934059		Anti - Tip Bracket		Appelez-nous	-
15A	3018285		Oven Liner Lt (bz)		Appelez-nous	-
15B	3018347		Oven Liner Top		Appelez-nous	-
15C	3018286		Oven Liner Back		Appelez-nous	-
3A	3131054		Shield-heat Right Side		Appelez-nous	-
7A	3204672		Hinge - Oven Dr Lt		Appelez-nous	-
