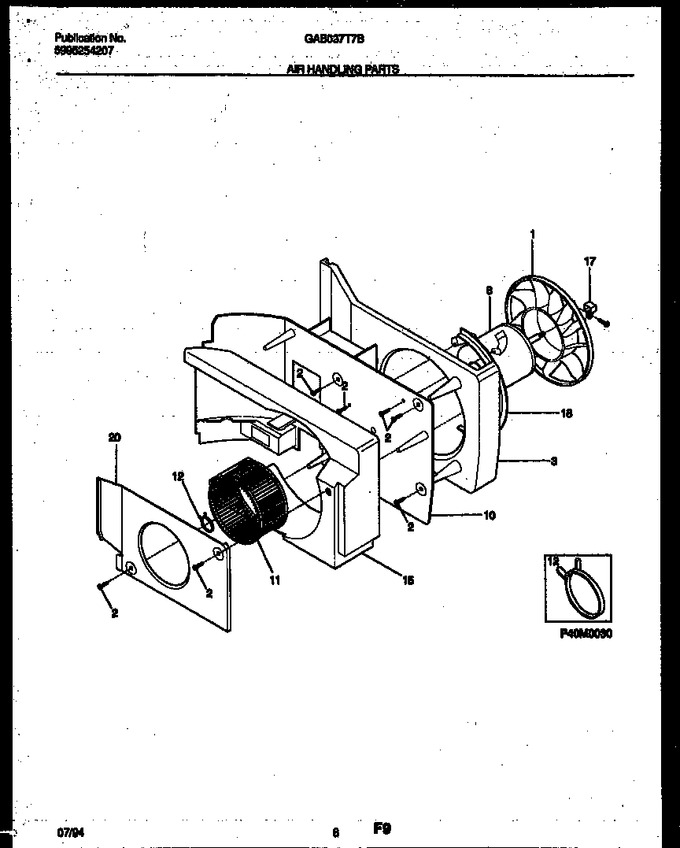

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303285447 | Fan Blade & Clamp |
|
- | |||||
| 2 | 3202975 | Screw |
|
- | |||||
| 3 | 5303285446 | Shroud |
|
- | |||||
| 8 | 5303295499 | Motor Fan |
|
- | |||||
| 10 | 5303286382 | Bulkhead |
|
- | |||||
| 11 | 5303285448 | Blower Wheel |
|
- | |||||
| 12 | 5303012110 | Clamp - Blower Wheel |
|
$ 8.14 | |||||
| 15 | 5303285449 | Scroll |
|
- | |||||
| 17 | 5308011040 | Clamp - Fan Blade |
|
- | |||||
| 18 | 5303270042 | Deflector-shroud |
|
- | |||||
| 20 | 5303286383 | Plate, Scroll |
|
- |
